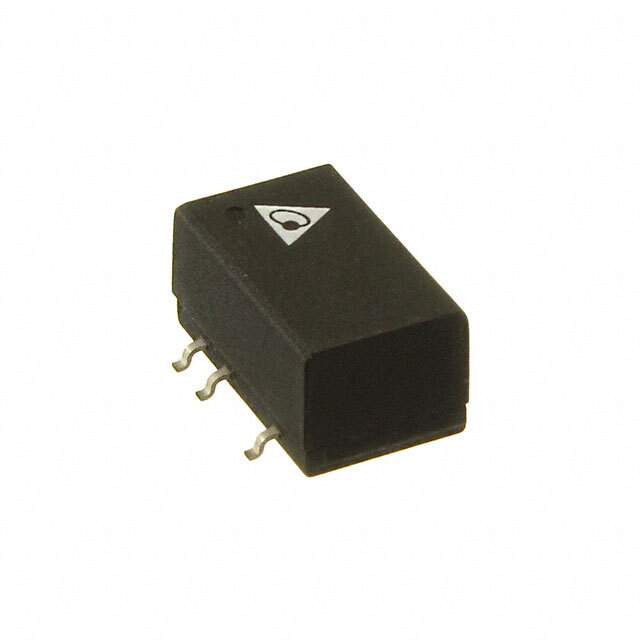

SH01S2415A Real Image
Same model may have multiple batches, images only for reference.

SH01S2415A

Part No SH01S2415A
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W  /  Isolated Module DC DC Converter 1 Output 15V 67mA 21.6V - 26.4V Input
Datasheet
SH01S2415A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series SH01S/D (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 79%
Mounting SMD (SMT)
Package / Case 8-SMD Module, 5 Leads
Dimension 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number SH01S
Other Names 941-1296
Standard Package 10
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237420-SH01S2415A
Ultra Librarian 3D Model Ultra Librarian SH01S2415A CAD Model

Description

The Delta Electronics SH01S/D (1W) DC DC Converter is an isolated module with short-circuit protection.

  • Power Output: 1 W
  • Efficiency: 79%
  • Package/Case: 8-SMD module, 5 leads
  • Temperature Range: -40°C to 85°C
  • Voltage Isolation: 1.5 kV
  • Application: ideal for medical applications
