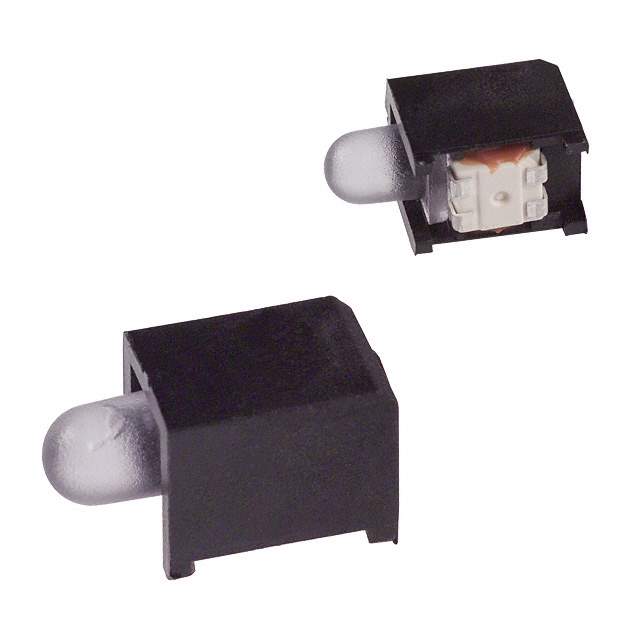

5912001013F Real Image
Same model may have multiple batches, images only for reference.

5912001013F

Part No 5912001013F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED PRISM 3MM RA HIEFF RED SMT
Datasheet
5912001013F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Dialight
Packaging Reel - TR
Status Active
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 20mA
Millicandela Rating 4.5mcd
Viewing Angle 40°
Lens Style/Size Round with Domed Top, 3mm (T-1)
Voltage Rating 2V
Mounting Surface Mount, Right Angle
Win Source Part Number 113432-5912001013F
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signalling
Quantity per package 1,600
Ultra Librarian 3D Model Ultra Librarian 5912001013F CAD Model

Description

The 5912001013F component stands out for its versatile application in numerous fields, offering unmatched flexibility and strength. Its high-quality manufacture ensures that it meets the rigorous demands of contemporary applications.

Features and Benefits

  • Highly flexible application potential
  • Sturdy and robust design
  • Efficient performance across various platforms
  • Minimal maintenance needs

Applications

  • Electronic control systems
  • Military-grade equipment
  • Data processing units
This component's minimal maintenance design ensures reduced downtime and increased productivity, making it an excellent choice for demanding operational environments.
