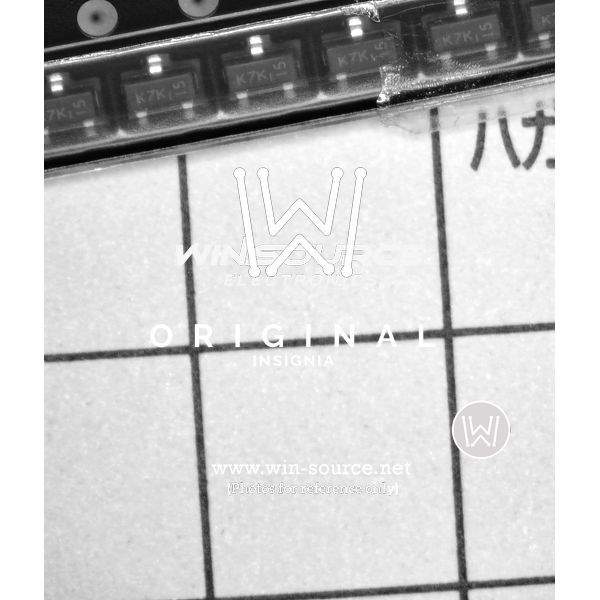

Product Overview: 2N7002K-7 - Diodes Incorporated

The 2N7002K-7 is a high-performance, small-signal N-Channel MOSFET, designed and manufactured by Diodes Incorporated. It is a versatile and robust transistor that is ideal for a wide range of applications, including load switch, power management, and logic-level conversion. This MOSFET is known for its low on-resistance and high switching speed, making it an efficient choice for power-sensitive designs.

Key Features:

• Device Type: N-Channel MOSFET
• Drain-Source Voltage (V_DS): 60V
• Continuous Drain Current (I_D): 300mA
• R_DS(on): 1.2 Ohms at V_GS = 10V
• Gate-Source Voltage (V_GS): ±20V
• Fast Switching Speed: Provides efficient operation
• Low Threshold Voltage: Suitable for logic-level applications
• ESD Protected: 2KV Human Body Model (HBM)
• Package: SOT-23
• RoHS Compliant: Yes

Applications:

The 2N7002K-7 MOSFET is a versatile component that can be used in a variety of electronic circuits. Its applications include, but are not limited to:

• Power Management Circuits
• DC/DC Converters
• Motor Control Systems
• Battery Management Systems
• Load Switching
• Logic Level Conversion

Quality and Reliability:

Diodes Incorporated is committed to providing high-quality and reliable components. The 2N7002K-7 MOSFET is produced with the highest manufacturing standards and is subjected to rigorous testing to ensure its performance and durability in various conditions. Customers can trust this product for its consistent performance and long-term reliability in their electronic designs.
