Product Overview: 74AUP2G125RA3-7 by Diodes Incorporated

The 74AUP2G125RA3-7 is a high-performance, dual non-inverting buffer/line driver with 3-state outputs, designed by Diodes Incorporated. This advanced ultra-low power (AUP) device is engineered to facilitate low-voltage operation, while maintaining high-speed performance. It is an ideal choice for interfacing with high-speed microprocessors or microcontrollers and can be used in various applications, including mobile devices, computing, and high-speed signal buffering.

Key Features

• Low-Voltage Operation: The device operates at a very low voltage range of 0.8V to 3.6V, making it suitable for battery-operated and portable applications.
• High-Speed Interface: With a maximum propagation delay of only 3.6ns at 3.3V, it provides high-speed data transmission, ensuring efficient communication between devices.
• Power-Off Disable: The outputs are disabled when V_CC is below 0.8V, minimizing power consumption when the device is not in use.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is provided on all pins, safeguarding the device from static damage and improving system reliability.

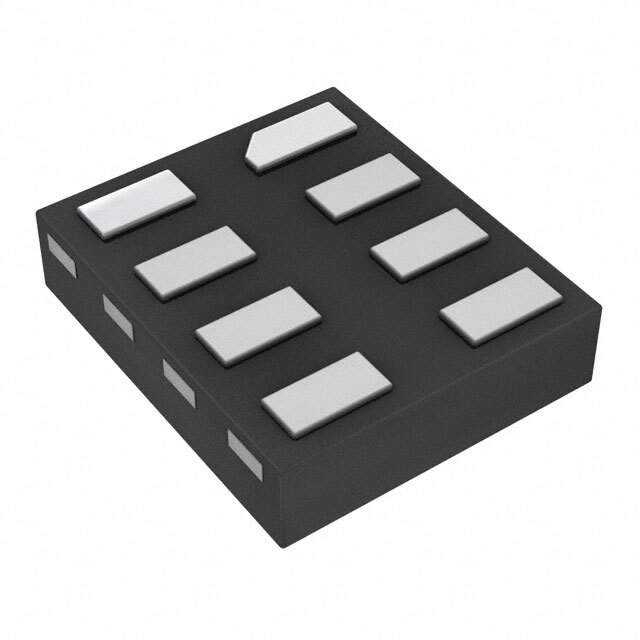

• Space-Saving Package: Available in a compact X2-DFN1410-6 package, the 74AUP2G125RA3-7 is designed for space-constrained applications.

Applications

The versatility of the 74AUP2G125RA3-7 allows it to be used in a wide range of applications. It is particularly useful in:

• Mobile Phones and Personal Digital Assistants (PDAs)
• Notebook and Desktop Computers
• Data Storage Devices
• Portable Media Players
• High-Speed Signal Buffering Applications

Environmental and Quality Certifications

Diodes Incorporated ensures that the 74AUP2G125RA3-7 meets stringent quality and environmental standards. The device is compliant with RoHS (Restriction of Hazardous Substances) and is characterized for operation from -40°C to +85°C, accommodating a wide range of industrial and commercial temperature requirements.

With its combination of low-power consumption, high-speed performance, and compact form factor, the 74AUP2G125RA3-7 from Diodes Incorporated is an excellent choice for designers looking to optimize their high-speed digital interface applications.
