Product Overview: 74LVC1G17Z-7 by Diodes Incorporated

The 74LVC1G17Z-7 is a high-performance, single Schmitt-trigger buffer designed by Diodes Incorporated to provide functional integration with a focus on power efficiency and signal conditioning. This integrated circuit is part of the 74LVC family, which is renowned for its low-voltage operation and compatibility with mixed-voltage systems.

Key Features

• Low Voltage Operation: The device operates at a supply voltage ranging from 1.65V to 5.5V, making it ideal for battery-operated and low-power applications.
• High-Speed Performance: It supports high-speed signal processing with a propagation delay typically only a few nanoseconds, facilitating quick data transfer and processing in critical applications.
• 5V Tolerant Inputs: Inputs can tolerate up to 5V, even when the device is powered off, providing interface flexibility with higher voltage logic levels without the risk of damage.
• Low Power Consumption: The 74LVC1G17Z-7 is designed for minimal power consumption, preserving battery life in portable devices.
• Schmitt-Trigger Action: With Schmitt-trigger inputs, the buffer provides noise immunity and clean output signals, making it suitable for noisy environments or for signals with slow edge rates.
• ESD Protection: Enhanced Electrostatic Discharge (ESD) protection is provided on all pins to prevent damage from static electricity, ensuring reliability and longevity.

Applications

The versatile nature of the 74LVC1G17Z-7 buffer makes it suitable for a broad range of applications, including:

• Wave shaping or noise filtering of digital signals
• Signal buffering for driving long traces or capacitive loads
• Interface circuitry between different logic levels or voltage domains
• Clock and data line conditioning in communication systems
• Portable and battery-powered electronics where power efficiency is crucial

Package and Quality

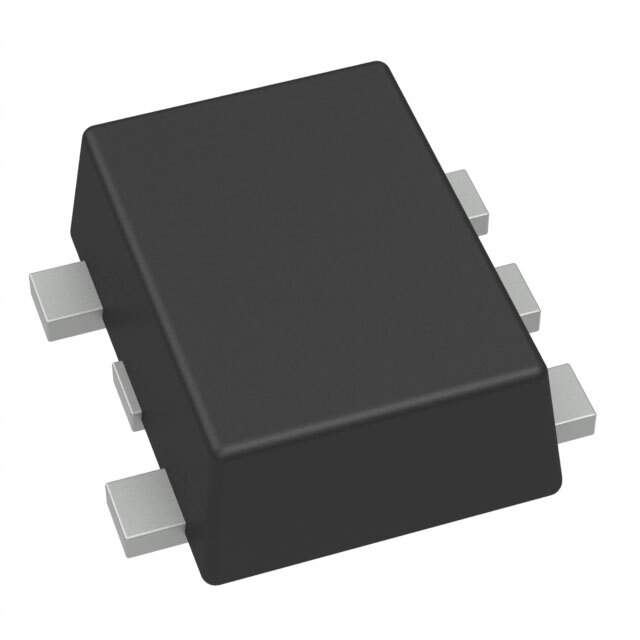

The 74LVC1G17Z-7 comes in a compact SOT-523 package, which is ideal for space-constrained applications. Diodes Incorporated ensures that this product meets stringent quality standards, providing reliability and performance consistency for industrial, commercial, and consumer electronics. This product is also compliant with RoHS standards, reflecting Diodes Incorporated's commitment to environmental responsibility.
