Diodes Incorporated presents the AH292-YG-13, a hallmark of precision and reliability in the realm of power management integrated circuits. This product is an exceptional Hall Effect latch designed for electronic commutation in brushless DC motor applications. It is also suitable for various other magnetic switching operations where a latch type Hall effect sensor is required.

Key Features

• High Sensitivity and Precision: The AH292-YG-13 offers high magnetic sensitivity, ensuring accurate detection and switching for critical applications.
• Wide Voltage Range: Operating over a supply range of 3.5V to 20V, this device is versatile and can accommodate a range of power supply variations.
• Low Power Consumption: With a quiescent current of only 25mA, it is an energy-efficient solution for continuous operation in power-sensitive systems.
• Robust Temperature Performance: Guaranteed to operate over a temperature range of -40°C to +85°C, the AH292-YG-13 is suitable for use in harsh environmental conditions.
• Chopper-Stabilized: The inclusion of chopper stabilization offers stable operation over the full temperature range by reducing the offset and drift in the sensor's output.
• Output Protection: It features Zener clamps which provide overvoltage protection for the output, ensuring the longevity and reliability of the sensor.

Applications

The AH292-YG-13 is designed to cater to a broad spectrum of applications. It is most commonly used in:

• Brushless DC Motor Control
• Position and Speed Sensing
• Revolution Counting
• Magnetic Switching Operations

Package and Availability

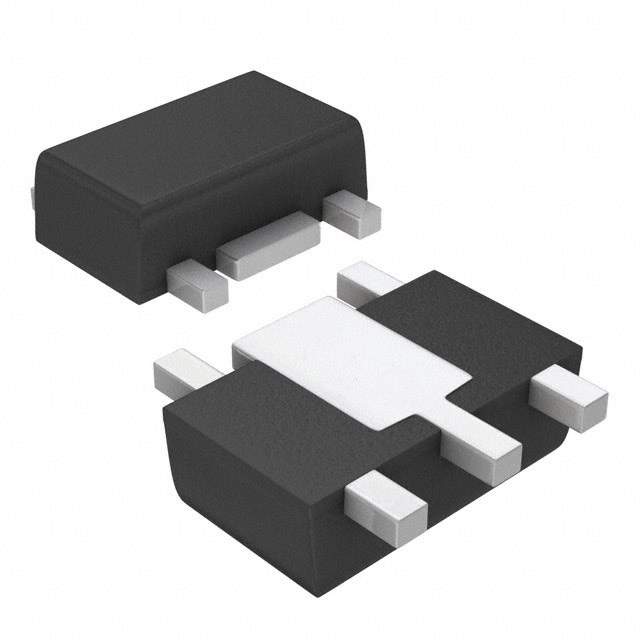

The AH292-YG-13 comes in a compact SOT-89 package, which is ideal for space-constrained applications. Its lead-free finish and RoHS compliance ensure it meets the latest environmental standards for electronic components. This product is available in a tape and reel format, facilitating efficient assembly during the manufacturing process.

With its exceptional performance and robust design, the AH292-YG-13 from Diodes Incorporated is the go-to choice for designers looking for a reliable and efficient Hall Effect latch sensor.
