The AP1117E18G-13 is a high-performance, low-dropout linear regulator offered by Diodes Incorporated, a leading manufacturer and supplier of high-quality semiconductor products. This regulator is designed to provide a stable and reliable power supply for a wide range of electronic applications, particularly where low voltage operation and low noise are required.

Key Features

• Output Voltage: The AP1117E18G-13 provides a fixed output voltage of 1.8V, which is ideal for low-voltage applications in modern electronic circuits.
• High Current Capability: With an output current of up to 1A, this regulator can support a variety of loads, from simple low-power devices to more demanding circuits.
• Low Dropout Voltage: The low dropout (LDO) feature ensures efficient operation even when the input voltage is very close to the output voltage, enhancing battery life in portable applications.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and current limit features to protect the electronic components from damage due to overheating or excessive current draw.
• Stable with Low ESR Output Capacitors: The AP1117E18G-13 is stable with ceramic capacitors on the output, which can help reduce the overall size of the power supply design.

Applications

The versatility of the AP1117E18G-13 makes it suitable for a broad range of applications, including:

• Consumer Electronics
• Computer Peripherals
• Networking Devices
• Industrial Control Systems
• Battery-Powered Devices

Package and Environmental Compliance

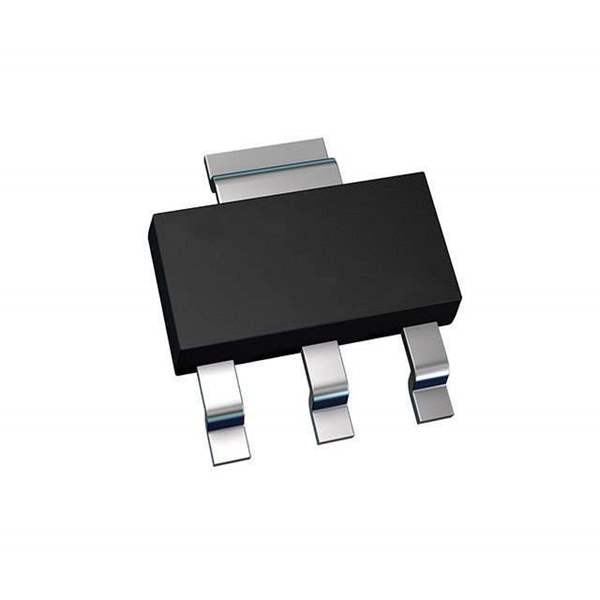

The AP1117E18G-13 is available in a green SOT-223 package, which not only ensures compactness but also meets environmentally friendly standards by being lead-free and RoHS compliant. This commitment to environmental sustainability makes the AP1117E18G-13 an excellent choice for eco-conscious designers and manufacturers.

Conclusion

In summary, the AP1117E18G-13 from Diodes Incorporated is a robust and reliable LDO regulator that offers a fixed 1.8V output, high current capability, and excellent protection features. Due to its high efficiency and low noise characteristics, it is an ideal solution for a wide array of electronic applications requiring stable power supply.
