The AP1117E33G-13 is a low dropout regulator designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This component is highly efficient and reliable, making it an ideal choice for a variety of applications that require stable voltage regulation.

Key Features

• Output Voltage: The device provides a fixed output voltage of 3.3V, which is commonly used in digital circuits and microcontroller-based systems.
• High Current Capability: It can deliver up to 1A of continuous output current, making it suitable for powering a wide range of devices.
• Low Dropout Voltage: The AP1117E33G-13 boasts a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage.
• Thermal and Overcurrent Protection: The regulator includes built-in thermal shutdown and current limit features to protect the device and the load from damage due to excessive heat or current.
• Stable with Low-ESR Output Capacitors: The device remains stable with low equivalent series resistance (ESR) capacitors, which reduces noise and ripple on the output voltage.

Applications

The AP1117E33G-13 is versatile and can be used in various applications, including but not limited to:

• Power supplies for microcontrollers and digital systems
• Post-regulation for switching supplies
• Consumer electronics
• Computer peripherals
• Portable devices

Package Information

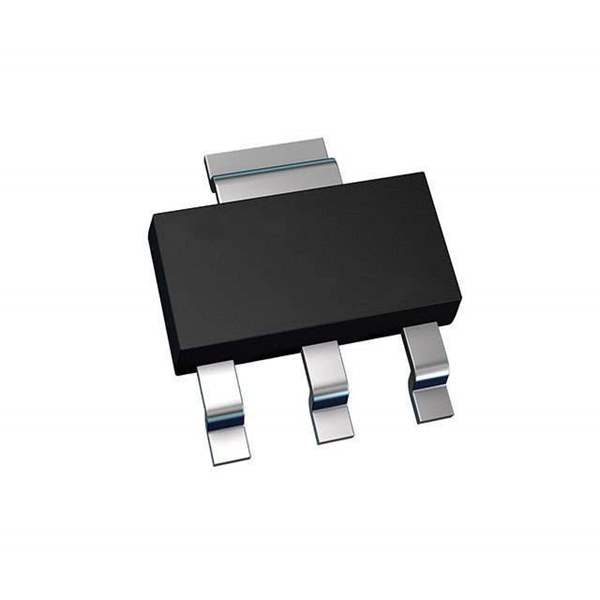

This voltage regulator is available in a green SOT-223 package, which is not only compact but also environmentally friendly. The package is designed for surface-mount technology (SMT), facilitating efficient assembly in automated manufacturing processes.

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products. The AP1117E33G-13 is manufactured with rigorous standards, ensuring reliability and performance consistency for the end user.
