Product Overview: AP1118D25L-13

The AP1118D25L-13 is a high-performance low dropout linear regulator (LDO) from Diodes Incorporated, designed to provide a stable and reliable power supply in a wide range of applications. This LDO is capable of delivering a continuous output current of up to 1A, making it suitable for powering sensitive electronic components that require a steady low-voltage supply.

Key Features

• Output Voltage: The AP1118D25L-13 provides a fixed output voltage of 2.5V, which is ideal for logic circuits and other standard voltage applications.
• High Accuracy: This LDO offers excellent regulation with a low dropout voltage, ensuring minimal power loss and high efficiency in operation.
• Current Limiting: It includes built-in current limiting features to protect the device and the load from overcurrent conditions.
• Thermal Protection: The device also incorporates thermal shutdown functionality to prevent overheating and damage at high operating temperatures.
• Low Quiescent Current: With its low idle current draw, the AP1118D25L-13 is suitable for battery-powered devices, helping to extend battery life.

Applications

The AP1118D25L-13 is versatile and can be used in various applications, including but not limited to:

• Consumer Electronics
• Computer Peripherals
• Portable Devices
• Power Management Circuits

Package and Availability

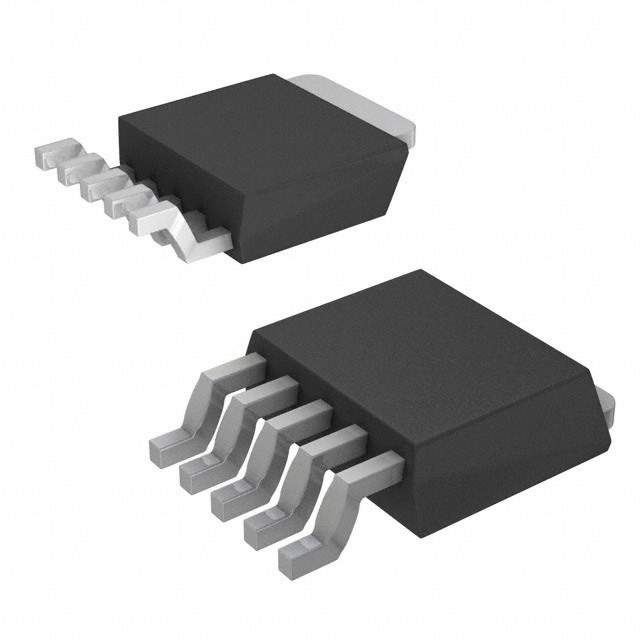

The product is available in a TO-252 (DPAK) package, which is known for its small footprint and ability to handle relatively high levels of power. The package is suitable for surface mount technology (SMT) and is compatible with standard PCB assembly processes.

Overall, the AP1118D25L-13 from Diodes Incorporated is a reliable and efficient solution for applications requiring a stable 2.5V power supply. With its precision output voltage, low dropout, and protective features, it is an excellent choice for designers looking to enhance system reliability and performance.
