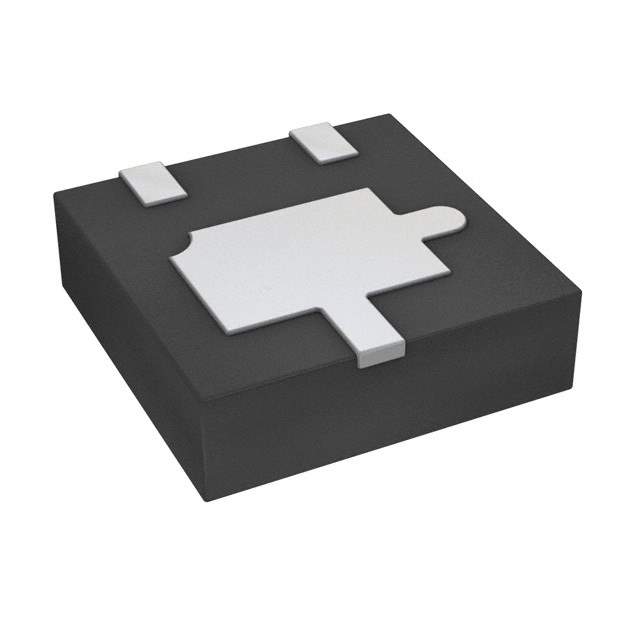

Diodes Incorporated BC56-16PA-7 Bipolar Transistor

The BC56-16PA-7 from Diodes Incorporated is a high-performance NPN bipolar junction transistor (BJT) designed for a multitude of applications requiring efficient amplification and switching. This versatile component is a fundamental building block in modern electronic circuits, offering designers a reliable and cost-effective solution for their designs.

The device features a collector-emitter voltage (Vceo) of 65V, which allows it to handle moderate power levels in compact circuits. Its collector current (Ic) rating of 100mA makes it suitable for signal processing applications where current handling capability is essential. The BC56-16PA-7 boasts a collector-base voltage (Vcbo) of 80V and emitter-base voltage (Vebo) of 6V, providing a wide operating range for various circuit configurations.

With a continuous collector current of 100mA and power dissipation of 500mW, this transistor can efficiently manage thermal performance, ensuring stability and long-term reliability. The device also features a DC current gain (hFE) range of 110 to 800, which ensures high efficiency in amplification applications, making it an excellent choice for audio amplifiers, signal processing, and other general-purpose amplification tasks.

Encased in a compact SOT-23 package, the BC56-16PA-7 is designed for surface-mount technology (SMT), which allows for high-density PCB designs and automated assembly processes. This small form factor contributes to reduced board space requirements and is ideal for portable and space-constrained applications.

The BC56-16PA-7 transistor also has a low saturation voltage, which minimizes power loss and improves efficiency, particularly important in battery-powered devices. Furthermore, its high gain bandwidth product ensures that the transistor can operate effectively at higher frequencies, making it suitable for RF and high-speed signal applications.

Overall, the BC56-16PA-7 from Diodes Incorporated is a reliable and versatile NPN transistor that offers a balance of performance, power handling, and compact packaging, making it a go-to choice for designers and engineers in a variety of electronic applications.
