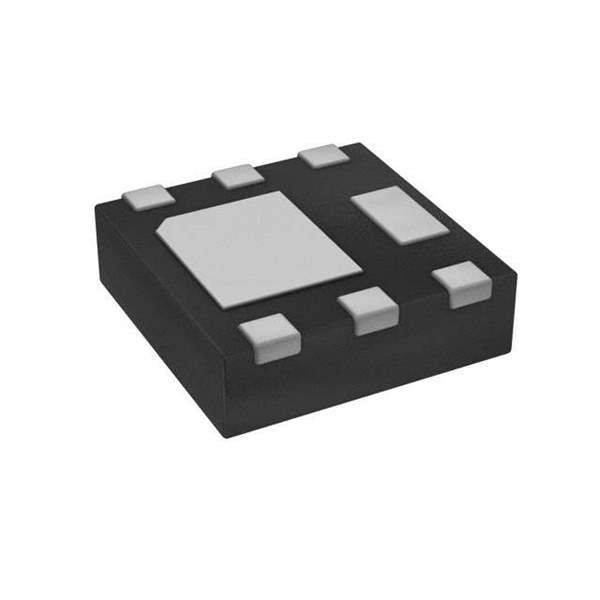

DMN3042LFDF-7

Part No DMN3042LFDF-7
Manufacturer Diodes Incorporated
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 7A 6UDFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 31 Weeks
Features N-Channel 30 V 7A (Ta) 2.1W (Ta) Surface Mount U-DFN2020-6 (Type F)
Manufacturer Diodes Incorporated
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 6-UDFN Exposed Pad
Case / Package U-DFN2020-6 (Type F)
Family Name DMN3042
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number DMN3042LFDF-7DIDKR, DMN3042LFDF-7-ND, DMN3042LFDF-7DITR, DMN3042LFDF-7DICT
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868997-DMN3042LFDF-7
Ultra Librarian 3D Model Ultra Librarian DMN3042LFDF-7 CAD Model

Description

DMN3042LFDF-7: A High-Performance MOSFET from Diodes Incorporated

The DMN3042LFDF-7 is a state-of-the-art N-Channel enhancement mode Field Effect Transistor (FET) designed and manufactured by Diodes Incorporated, a leading global provider of high-quality semiconductor products. This MOSFET is part of the DMN series, which is renowned for its high efficiency, low power consumption, and robust performance in a wide range of electronic applications.

Constructed with advanced trench technology, the DMN3042LFDF-7 offers an excellent RDS(on) (on-state resistance) as low as 84 mOhms at VGS = 10V, which ensures minimal power loss and heat generation during operation. This feature makes it an ideal choice for power management tasks where efficiency is paramount, such as in DC-DC converters, power supplies, and motor control circuits.

The device is housed in a compact DFN2020-6 (Dual Flat No Leads) package, which measures just 2.0mm x 2.0mm, making it perfect for space-constrained applications. Its small footprint does not compromise its thermal performance, thanks to the power dissipation capability of up to 2.5W. This allows the DMN3042LFDF-7 to handle significant current loads without overheating, thereby extending the longevity of the product and the overall system.

With a continuous drain current (ID) of up to 7.3A and a pulsed drain current (IDM) of 29.2A, the DMN3042LFDF-7 can easily manage high current demands. Additionally, it supports a maximum drain-source voltage (VDSS) of 30V, providing a wide safety margin for most low to medium voltage applications.

The DMN3042LFDF-7 is also characterized by its fast switching speeds, which are essential for applications requiring high-frequency operation. This, combined with its low gate charge (QG), makes it a highly responsive component, able to switch on and off with minimal delay.

For designers and engineers looking for a reliable and efficient solution for their power management needs, the DMN3042LFDF-7 from Diodes Incorporated offers the perfect blend of performance, size, and thermal efficiency. Its robust design ensures that it can meet the demands of a variety of applications while maintaining high performance and reliability.

Whether it's for consumer electronics, industrial systems, or automotive applications, the DMN3042LFDF-7 is a versatile component that delivers exceptional performance where it counts.
