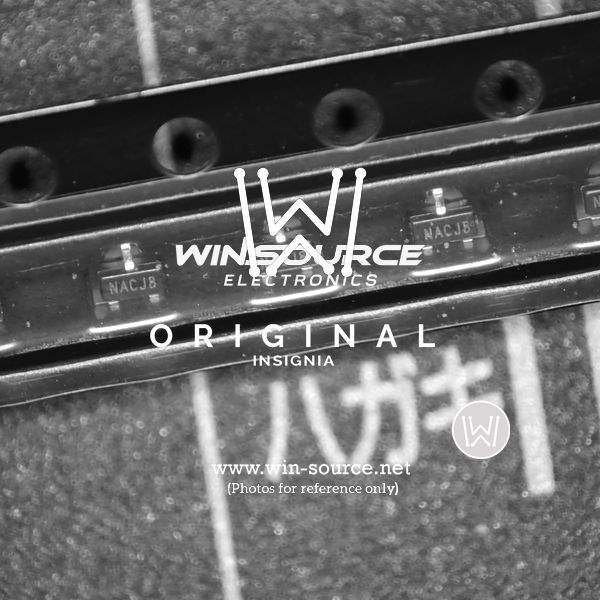

Product Overview: DMN55D0UTQ-7 - Diodes Incorporated

The DMN55D0UTQ-7 is a high-performance, N-channel enhancement mode field-effect transistor (FET) from the reputable semiconductor manufacturer, Diodes Incorporated. This MOSFET is designed to provide efficient power management and signal amplification in a wide range of electronic applications. The DMN55D0UTQ-7 is a testament to Diodes Incorporated's commitment to providing advanced semiconductor solutions that meet the evolving needs of the electronics industry.

Key Features

• Low On-Resistance: The DMN55D0UTQ-7 boasts an extremely low on-resistance, which minimizes conduction losses and improves overall efficiency in electronic circuits.
• High-Speed Switching: This MOSFET is capable of high-speed switching operations, making it ideal for high-frequency power converters and other applications that require fast switching times.
• Low Threshold Voltage: With a low gate threshold voltage, this device can be easily driven by logic-level voltages, simplifying the design of control circuits.
• Surface-Mount Package: The DMN55D0UTQ-7 comes in a compact, surface-mount SOT-23 package, which saves valuable board space and is suitable for automated assembly processes.
• Lead-Free and RoHS Compliant: This product is environmentally friendly, complying with the Restriction of Hazardous Substances (RoHS) directive, making it suitable for use in green products.

Applications

The versatility of the DMN55D0UTQ-7 allows it to be used in a multitude of applications, including:

• Power Management Circuits
• DC/DC Converters
• Battery Management Systems
• Motor Control Drivers
• Switch Mode Power Supplies (SMPS)
• Load Switches
• Portable Electronic Devices

Technical Specifications

The DMN55D0UTQ-7 features a continuous drain current (ID) of 460 mA, a drain-source voltage (VDS) of 50V, and a gate-source voltage (VGS) of ±20V. This FET operates at a maximum junction temperature of 150°C, ensuring reliable performance even under thermal stress.

In summary, the DMN55D0UTQ-7 from Diodes Incorporated is a high-quality, efficient, and versatile N-channel MOSFET that is well-suited for a wide range of applications where power efficiency and space-saving are critical. Its low on-resistance, high-speed switching capabilities, and compact form factor make it a valuable component for modern electronic designs.
