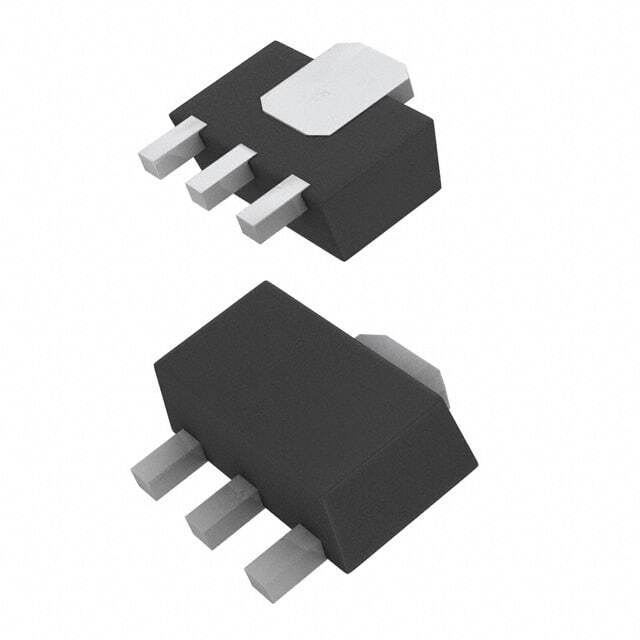

Same model may have multiple batches, images only for reference.
2SD874-S-TP
Same model may have multiple batches, images only for reference.

2SD874-S-TP

Part No 2SD874-S-TP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS NPN 25V 1A SOT89
Datasheet
2SD874-S-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 25 V
Vce Saturation (Max) @ Ib, Ic 400mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 170 @ 500mA, 10V
Power - Max 500 mW
Frequency - Transition 200MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Base Product Number 2SD874
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 855326-2SD874-S-TP
Ultra Librarian 3D Model Ultra Librarian 2SD874-S-TP CAD Model

Description

The 2SD874-S-TP is an NPN bipolar transistor with a maximum power dissipation of 500mW manufactured by Micro Commercial Co.

  • Transistor Type: NPN Bipolar
  • Maximum Power Dissipation: 500mW
  • Collector-Emitter Breakdown Voltage: 25V
  • Maximum Collector Current: 1A
  • Vce Saturation: 400mV @ 50mA and 500mA
  • DC Current Gain: 170 @ 500mA and 10V
  • Package: TO-243AA SOT-89
  • Mounting Type: Surface Mount
  • Product Status: Obsolete
