Product Overview: DMTH10H4M6SPS-13

The DMTH10H4M6SPS-13 is a high-performance, surface-mount MOSFET from Diodes Incorporated, renowned for its exceptional quality and reliability. This product is designed to cater to a wide range of applications, including but not limited to power management, load switching, and motor control in consumer, industrial, and automotive sectors.

Key Features

• Device Type: MOSFET
• Configuration: Dual N-Channel
• Material: Silicon

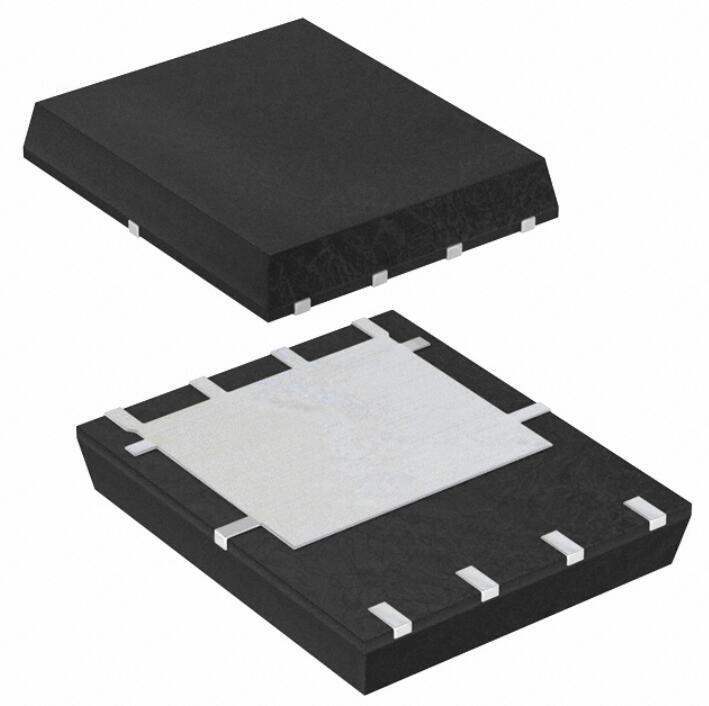

• Package / Case: PowerDI®5060-8
• Mounting Type: Surface Mount
• Drain-Source Voltage (Vdss): 100V
• Continuous Drain Current (Id): 10A
• Power Dissipation (Pd): 88W
• RDS(on): 13 mOhms at 10V
• Maximum Operating Temperature: +150°C
• RoHS: Compliant

Performance and Efficiency

The DMTH10H4M6SPS-13 MOSFET is engineered to provide low on-resistance and high switching performance. The device's low RDS(on) minimizes conduction losses, while its fast switching speeds reduce switching losses, making it an ideal choice for high-efficiency power management systems. The dual N-Channel configuration allows for flexibility in design and can be used in various circuit topologies.

Robustness and Reliability

With a maximum operating temperature of +150°C, the DMTH10H4M6SPS-13 is built to withstand harsh operating conditions, ensuring long-term reliability and stability. The product is also encapsulated in a PowerDI®5060-8 package, which provides excellent thermal performance and a compact footprint for space-constrained applications.

Environmental Compliance

Diodes Incorporated is committed to environmental stewardship. The DMTH10H4M6SPS-13 MOSFET meets RoHS standards, which means it is free from hazardous substances commonly found in electronic components. This compliance ensures that the product is suitable for use in a wide range of eco-conscious applications.

Applications

The versatility of the DMTH10H4M6SPS-13 allows it to be used in various applications, including power supplies, DC-DC converters, battery management systems, and load switches. Its robust performance also makes it an excellent choice for automotive electronics, where reliability and efficiency are paramount.

Overall, the DMTH10H4M6SPS-13 from Diodes Incorporated represents a blend of performance, efficiency, and reliability, making it a go-to component for designers looking to optimize their power management systems.
