ES2DA Surface Mount Fast Recovery Rectifier

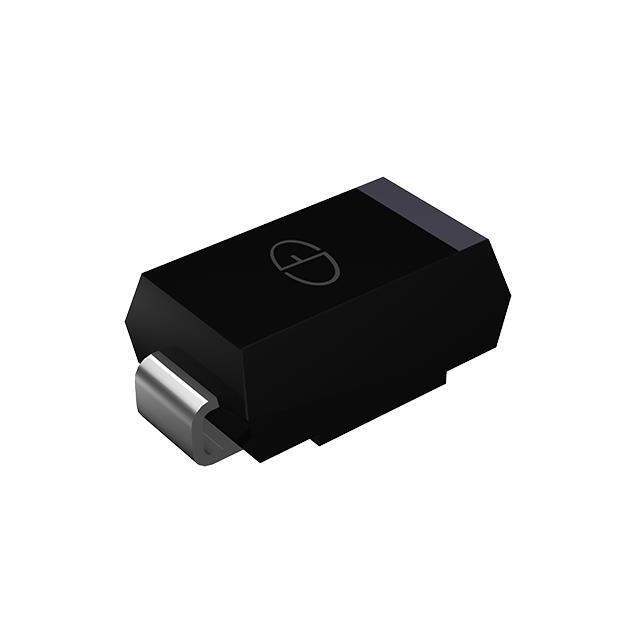

The ES2DA from Diodes Incorporated is a high-efficiency, surface-mount fast recovery rectifier designed for applications requiring low forward voltage drop and fast switching capabilities. This rectifier is part of Diodes Incorporated's ES2x series, which is renowned for its reliability and performance in a compact SMA (DO-214AC) package.

With a repetitive peak reverse voltage of 200V and an average rectified forward current of 2A at TA = 100°C, the ES2DA is an excellent choice for high-density circuit designs. The device features a fast reverse recovery time, typically less than 50ns, which makes it ideal for use in high-frequency rectification and freewheeling application in power supplies and other devices that demand efficient energy handling.

The low forward voltage drop (typically 0.975V at 2A) ensures minimal power loss and improved efficiency, which is critical for energy-sensitive electronics. This characteristic, combined with a peak forward surge current of 50A, makes the ES2DA suitable for high-surge environments, providing robust performance during transient conditions.

Designed with the end-user in mind, the ES2DA rectifier offers a high-temperature soldering guarantee: 260°C/10s, per JESD 22-B106. This feature ensures that the product can withstand the thermal rigors of the most demanding surface-mount processes. The component is also RoHS compliant and is provided in a 'Green' molding compound, which contains no halogens, antimony, or red phosphorus, making it an environmentally friendly choice for electronic manufacturers looking to minimize their ecological footprint.

The ES2DA is suitable for a variety of applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters

With its combination of fast switching speeds, low power loss, and robust construction, the ES2DA from Diodes Incorporated is a versatile component that enhances the performance and reliability of a wide range of electronic devices.
