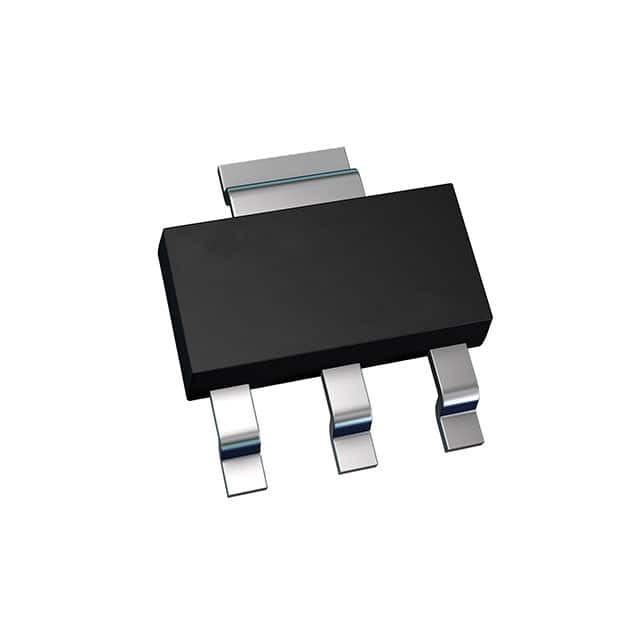

The FZT692BTC from Diodes Incorporated is a high-performance, high current PNP transistor designed for use in power management and signal processing applications. This versatile transistor is housed in a compact SOT-223 package, which makes it suitable for space-constrained designs while providing excellent power dissipation capabilities.

Key Features

• Transistor Type: The device is a PNP bipolar junction transistor (BJT) that offers a quick switching response and low saturation voltage, making it ideal for high-speed switching applications.
• Current Rating: It boasts a high continuous collector current rating of up to -2A, allowing it to handle significant power for its size.
• Power Dissipation: With a power dissipation of 2W, the FZT692BTC can manage a substantial amount of power, which is remarkable for its compact form factor.
• Voltage Ratings: The transistor operates at a collector-emitter voltage (VCEO) of -40V, and a collector-base voltage (VCBO) of -60V, providing a wide operating range for various applications.
• High Gain Bandwidth Product: It features a high gain bandwidth product (fT) typically at 140MHz, ensuring good amplification characteristics for analog signals.
• Package: The SOT-223 package is not only space-efficient but also allows for efficient heat dissipation, which is critical in maintaining stability and performance under high-load conditions.

Applications

The FZT692BTC is suitable for a range of applications including, but not limited to:

• Power management circuits
• DC-DC converters
• Motor control circuits
• Audio amplifiers
• Signal amplification tasks
• Switching regulators

Conclusion

In conclusion, the FZT692BTC from Diodes Incorporated represents a reliable and efficient solution for designers looking to incorporate a high-current PNP transistor into their applications. Its combination of high current capability, low saturation voltage, and high gain bandwidth product, all within a compact and thermally efficient SOT-223 package, make it a versatile choice for a wide array of electronic designs.
