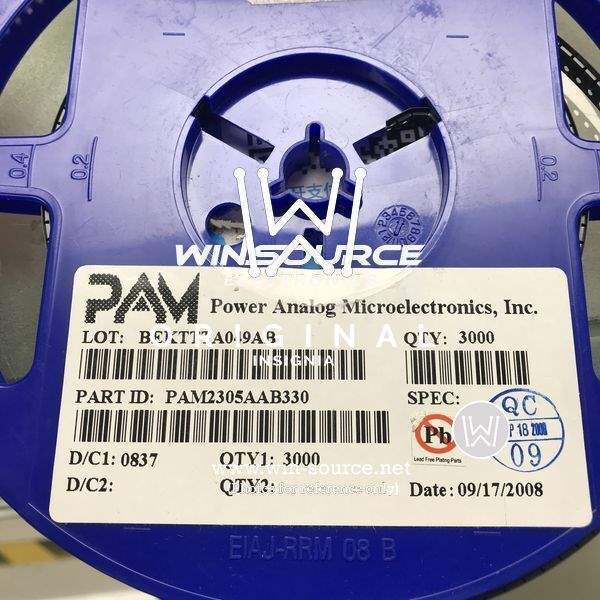

Diodes Incorporated - PAM2305AAB330

The PAM2305AAB330 is a high-performance, dual-channel, synchronous step-down current-mode DC-DC converter from Diodes Incorporated. This efficient power management integrated circuit is designed to deliver a continuous output current of up to 3A for each channel, making it an ideal solution for powering core voltages of fast switching processors, chipsets, and other advanced electronics.

Operating at a frequency of 1.5MHz, the PAM2305AAB330 allows for the use of small, low-cost inductors and capacitors, resulting in a compact power supply solution with minimal external components. This feature is particularly beneficial for space-constrained applications. The device supports an input voltage range from 2.5V to 5.5V, which accommodates a variety of power sources, including single-cell lithium-ion batteries, 3.3V and 5V rails, and more.

One of the key attributes of the PAM2305AAB330 is its high efficiency, which is achieved through its synchronous rectification and low quiescent current. This efficiency minimizes heat generation and extends battery life in portable applications. Additionally, the device's current-mode control ensures fast transient response and excellent loop stability.

The PAM2305AAB330 is equipped with a host of protective features to ensure reliable operation under adverse conditions. These include over-current protection (OCP), under-voltage lockout (UVLO), thermal shutdown, and soft-start to prevent inrush current during startup. The device is also capable of operating in 100% duty cycle mode at low dropout conditions, which is essential for battery-powered applications requiring maximum runtime.

This DC-DC converter comes in a compact U-DFN3030-10 (Type B) package, which is suitable for automated assembly and saves board space. The PAM2305AAB330 is an excellent choice for designers looking for a power-efficient, reliable, and space-saving solution for their next-generation electronic devices.

Whether it's for smartphones, tablets, portable gaming systems, or other portable electronics, the PAM2305AAB330 from Diodes Incorporated provides the performance and features necessary to meet the stringent power requirements of today's advanced digital products.
