Introducing the PAM8014AZR from Diodes Incorporated

The PAM8014AZR is a state-of-the-art audio amplifier designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This miniature yet powerful component is engineered to deliver exceptional audio performance for a wide range of consumer electronics.

At the heart of the PAM8014AZR is a filterless Class-D architecture that provides a high-efficiency solution for portable audio applications. With its compact design, this amplifier is ideal for space-constrained devices such as smartphones, tablets, portable media players, and laptop computers. The PAM8014AZR is capable of driving 3W into a 4-ohm load with less than 10% total harmonic distortion plus noise (THD+N), ensuring a clear and powerful sound output.

Key Features of the PAM8014AZR:

• High-Efficiency Class-D Operation: Reduces power consumption and extends battery life in portable applications.
• Filterless Design: Simplifies circuitry and reduces external component count, while still maintaining excellent audio performance.
• Advanced Over-Temperature Protection: Ensures the device operates safely under extreme conditions and enhances product reliability.
• Low Quiescent Current: Minimizes standby power consumption, making it suitable for battery-powered devices.
• Superior Audio Quality: Delivers 3W output power with low THD+N, providing a high-fidelity audio experience.

This audio amplifier also features a built-in shutdown function that can be activated to further reduce power consumption when not in use. The PAM8014AZR operates over a wide supply voltage range from 2.8V to 5.5V, accommodating various power sources and ensuring versatility across different product designs.

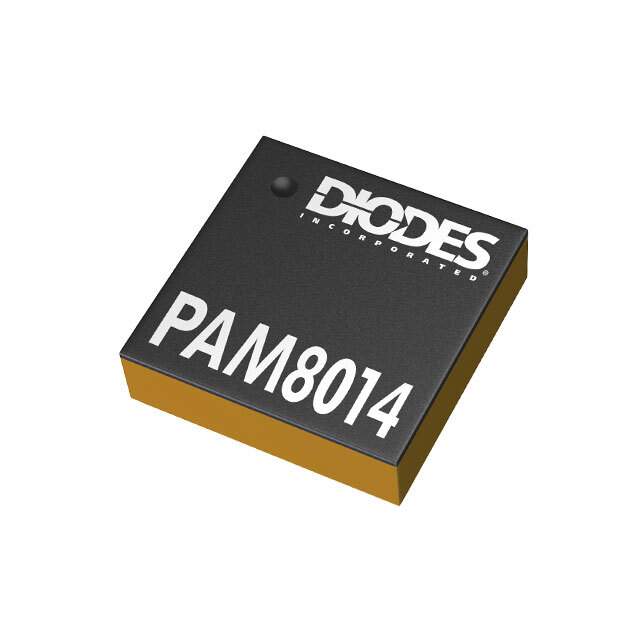

The PAM8014AZR comes in a space-saving U-DFN3030-12 (Type ZR) package, which not only meets the demands of compact electronics but also facilitates easier integration into existing designs. Whether you're developing a new audio-centric device or looking to enhance the sound quality of an existing product, the PAM8014AZR is an excellent choice that combines performance, efficiency, and reliability.

With its robust feature set and Diodes Incorporated's commitment to quality, the PAM8014AZR stands out as a superior audio amplification solution for today's market.
