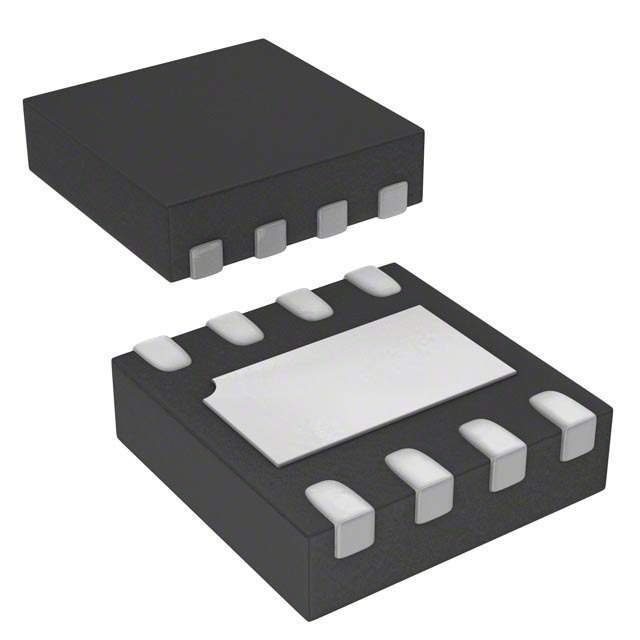

The PAM8302AAYCR is a highly-efficient, Class-D audio amplifier with a mono output, designed by Diodes Incorporated to deliver premium sound quality for a wide range of applications. With its compact form factor and impressive power output, this component is an ideal choice for portable electronics where space is at a premium and energy efficiency is crucial.

Key Features

• Output Power: The PAM8302AAYCR delivers up to 2.5W into a 4Ω speaker with a 5V power supply, ensuring robust audio performance in a small package.
• Efficiency: As a Class-D amplifier, it offers high efficiency, which is especially beneficial for battery-powered devices, extending their usage time.
• Low Quiescent Current: The low quiescent current draw helps in minimizing the power consumption when the amplifier is in idle mode, further conserving energy.
• Thermal Overload Protection: Built-in thermal overload protection safeguards the amplifier from damage due to overheating, ensuring reliability and longevity.
• Volume Control: An external gain setting allows users to adjust the volume, providing flexibility in audio output for different environments.

Applications

The versatility of the PAM8302AAYCR makes it suitable for a variety of applications. It is commonly used in:

• Portable speakers
• Smartphones and tablets
• Wireless speakers
• Personal media players
• Educational and DIY electronics projects

Technical Specifications

The amplifier operates within a voltage range of 2.8V to 5.5V, making it compatible with most standard power supplies and batteries. It has a PSRR of 90dB at 217Hz, which means it effectively rejects power supply noise, ensuring clean sound reproduction. The device is housed in a compact U-DFN3030-9 package, which is highly suitable for space-constrained designs.

Conclusion

The PAM8302AAYCR from Diodes Incorporated stands out as a reliable and efficient solution for adding audio amplification to a variety of consumer electronics. Its combination of power, efficiency, and protection features make it a valuable component for designers looking to enhance the audio experience in their products.
