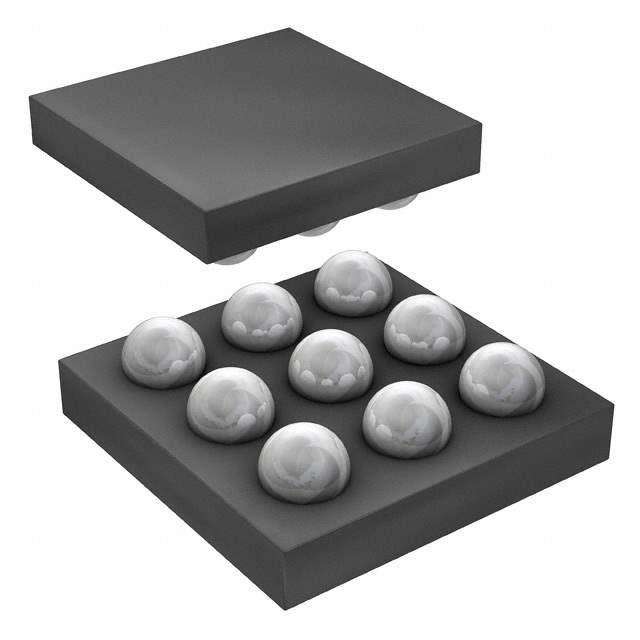

The PAM8303CAZN is a versatile and high-performance audio amplifier designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This audio amplifier is part of their extensive range of audio solutions tailored to meet the demands of modern consumer electronics. The PAM8303CAZN is specifically engineered to deliver exceptional sound quality with low distortion, making it an ideal choice for portable and space-constrained applications.

Key Features

• Output Power: Capable of delivering up to 3W of continuous average power to a 4Ω load with less than 10% THD+N from a 5V supply.
• High Efficiency: With an efficiency rate that can reach up to 90%, this amplifier ensures minimal power loss and heat generation, thus extending battery life in portable applications.
• Low Quiescent Current: The PAM8303CAZN boasts a low quiescent current, which is particularly beneficial for battery-powered devices, as it helps to conserve energy when in standby mode.
• Filterless Design: The innovative filterless architecture allows the amplifier to drive the speaker directly, eliminating the need for external low-pass output filters, which reduces overall component count and system cost.
• No Pop Noise: This audio amplifier features a built-in pop-and-click suppression circuit that minimizes noise which can occur during turn-on and turn-off transitions.

Applications

The PAM8303CAZN is suitable for a wide range of applications where high-quality audio performance and efficiency are essential. It is commonly used in portable audio devices, such as mobile phones, tablets, portable media players, and handheld gaming devices. Additionally, it can be implemented in small home audio systems, digital audio docks, and soundbars, providing a compact yet powerful audio amplification solution.

Technical Specifications

With its compact size, high efficiency, and superior audio performance, the PAM8303CAZN stands out as a top choice for designers looking to enhance their audio systems without compromising on quality or space.
