The PI3EQX1004B1ZHEX from Diodes Incorporated is a high-performance, PCIe 3.0 (8.0 Gbps) ReDriver with 4 differential channels. Designed to enhance signal quality by performing receive equalization on deteriorated input signal followed by transmit de-emphasis, this ReDriver ensures data integrity over long or noisy channels. Its primary application is in motherboard designs, where signal integrity can become compromised by physical channel limitations.

This advanced signal conditioning device supports four 100 Ω Differential CML data I/O’s and offers programmable linear equalization, output swing, and flat gain to optimize performance over a variety of physical mediums by reducing inter-symbol interference. The PI3EQX1004B1ZHEX is suitable for applications in desktops, workstations, servers, add-in cards, and high-performance computing, where maintaining signal integrity is crucial for system reliability and performance.

Key features of the PI3EQX1004B1ZHEX include:

• Compliance with PCIe 3.0 Base Specification: Ensures compatibility with the latest PCIe standards for seamless integration into modern designs.
• Automatic Equalization: Adaptive receive equalization automatically adjusts to the optimal level to minimize data loss and errors.
• Programmable Settings: Offers flexibility in optimizing settings for specific channel characteristics, with the ability to fine-tune equalization, flat gain, and output swing levels.
• Low Power Consumption: Designed for energy-efficient operation, which is critical in today’s eco-conscious market.

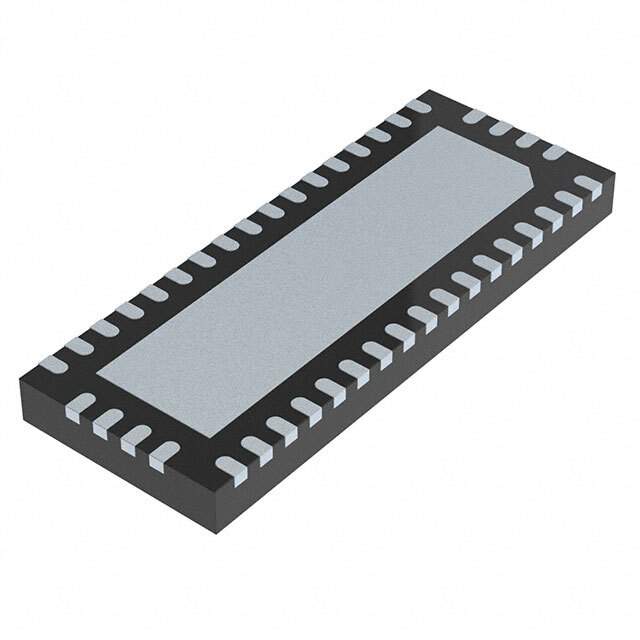

• Small Form Factor: Available in a compact, 42-contact TQFN package, it is ideal for space-constrained applications.

The device also features an I2C Slave interface for extensive programmability of the equalization, output swing, and flat gain parameters. Additionally, it includes an integrated eye monitor for signal integrity analysis, which can be a valuable tool for system diagnostics and troubleshooting.

The PI3EQX1004B1ZHEX by Diodes Incorporated is a robust solution for maintaining signal integrity in high-speed communication channels, making it an essential component for enhancing the performance and reliability of your high-speed digital applications.
