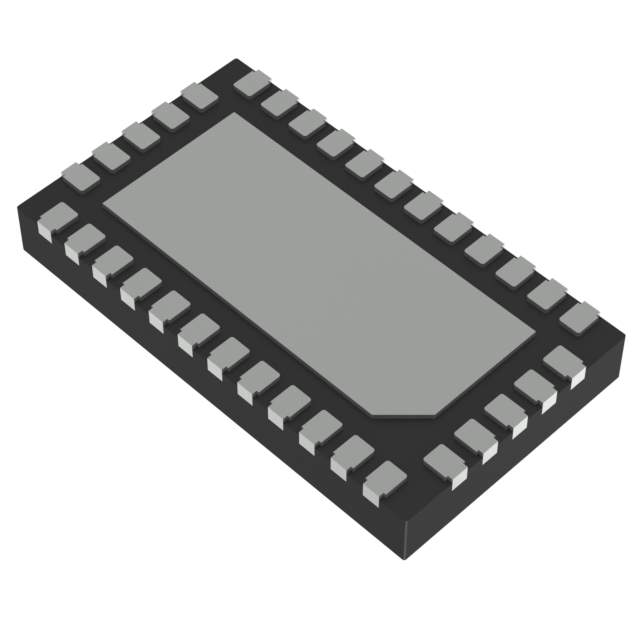

The PI3EQX1004EZTFEX is a high-performance, PCIe 3.0 signal ReDriver from Diodes Incorporated designed to enhance signal quality by performing receive equalization on deteriorated input signal followed by transmit de-emphasis, maximizing system performance. This product is specifically engineered to deliver improved signal integrity for high-speed serial links, which is a critical feature for maintaining robust communication in a variety of digital applications.

Key Features

• PCIe 3.0 Support: Compliant with PCIe 3.0 Base Specification with support for 8 GT/s, 5 GT/s, and 2.5 GT/s data rates, ensuring compatibility with the latest generation of PCIe interfaces.
• Signal Conditioning: Integrated advanced signal conditioning capabilities, including programmable equalization, linear swing, and flat gain, to optimize performance over a variety of physical mediums.
• Low Power Consumption: Designed with power efficiency in mind, the device operates with low power consumption, making it suitable for power-sensitive applications.
• High Reliability: Built to provide reliable operation in demanding environments, ensuring a stable connection and long product lifespan.
• Small Form Factor: Available in a compact package, the PI3EQX1004EZTFEX is ideal for space-constrained applications, without compromising on performance.

Applications

The PI3EQX1004EZTFEX is versatile and can be used in a wide range of applications, including:

• Desktop and Laptop PCs
• Server and Storage Systems
• Networking Equipment
• Data Center Infrastructure
• High-performance Computing

Technical Specifications

With its robust design and cutting-edge technology, the PI3EQX1004EZTFEX from Diodes Incorporated is the ideal solution for enhancing PCIe 3.0 signal integrity and system reliability in high-speed digital applications.
