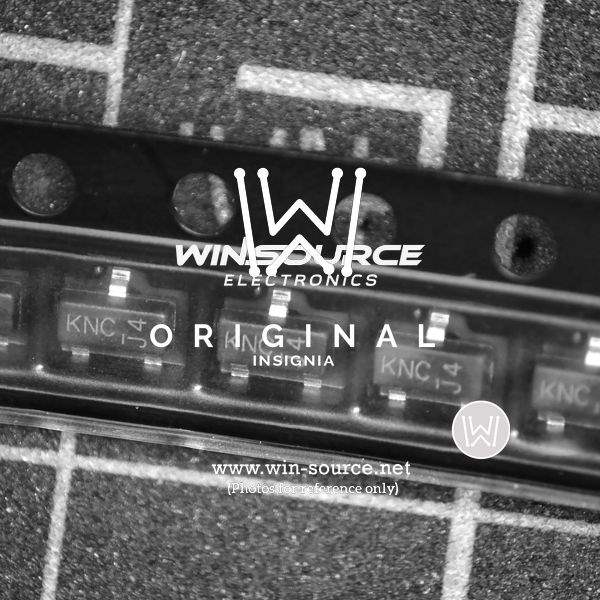

The ZXMN2F30FHTA from Diodes Incorporated is a high-performance, energy-efficient MOSFET designed for a wide range of applications. This N-Channel enhancement mode Field Effect Transistor is built using Diodes Incorporated's advanced trench technology to provide superior performance in terms of low on-resistance and high switching speeds, making it an excellent choice for power management tasks.

Key Features

• Low On-Resistance: The device offers very low R<sub>DS(on), which minimizes conduction losses and improves overall efficiency, especially in high current applications.
• High-Speed Switching: With its fast switching capabilities, the ZXMN2F30FHTA is suitable for high-frequency circuits, reducing switching losses and improving performance.
• High Power and Current Handling: This MOSFET can handle continuous drain currents up to 4.1A, making it suitable for high-power applications.
• Thermal Management: The SOT23F package enhances thermal performance, ensuring reliability even under high operating temperatures.
• Voltage Control: It is capable of withstanding a maximum drain-source voltage (V<sub>DSS) of 20V, providing stable operation in a variety of circuits.

Applications

The ZXMN2F30FHTA is versatile and can be used in a variety of applications, including:

• Power management for consumer electronics such as smartphones, tablets, and laptops.
• DC/DC converters, where efficiency and fast switching are critical.
• Load switches, which benefit from the low on-resistance and high current handling capabilities.
• Motor control circuits in automotive and industrial applications.
• LED lighting systems, where power efficiency is essential.

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the ZXMN2F30FHTA is no exception. It is produced with stringent quality control measures and reliability testing to ensure it meets the high standards expected by customers in critical applications.
