Introducing the ZXT13N20DE6TA from Diodes Incorporated

The ZXT13N20DE6TA is a high-performance, low-saturation dual NPN transistor designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This precision-engineered product is part of their extensive range of bipolar transistors, which are known for their reliability and efficiency in various electronic applications.

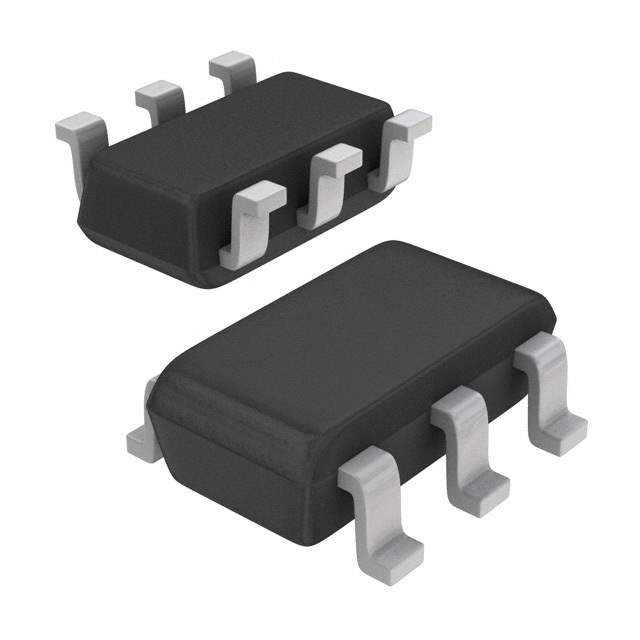

With its compact SOT-23-6 package, the ZXT13N20DE6TA offers a space-saving solution for modern electronic circuits. This makes it an ideal choice for high-density PCB designs where space is at a premium. The transistor’s dual configuration allows for reduced component count, enhancing design simplicity and improving overall system reliability.

Key Specifications:

• Transistor Polarity: NPN
• Collector-Emitter Voltage (VCEO): 20V
• Collector Current (IC): 5A
• Power Dissipation (Pd): 2W
• DC Current Gain (hFE): 40 to 400
• Operating Temperature Range: -55°C to +150°C
• Package/Case: SOT-23-6

The ZXT13N20DE6TA boasts a low collector-emitter saturation voltage, which translates to reduced power loss and improved efficiency, particularly in low voltage switching applications. Its high collector current rating of 5A makes it suitable for handling significant power levels, while the power dissipation of 2W ensures stable operation under a wide range of conditions.

Applications for this versatile transistor are diverse, ranging from power management tasks to signal processing. It is particularly well-suited for use in:

• Power switches
• DC-DC converters
• Motor control circuits
• Amplification circuits

Diodes Incorporated’s commitment to quality is evident in the ZXT13N20DE6TA’s construction and performance. It is designed to meet stringent industry standards, ensuring a reliable performance for both commercial and industrial applications. This product is a testament to Diodes Incorporated’s dedication to providing components that push the boundaries of efficiency, size, and thermal performance.

Whether you're designing power management systems or looking to enhance the efficiency of your electronic applications, the ZXT13N20DE6TA dual NPN transistor is a choice that promises to deliver both performance and value.
