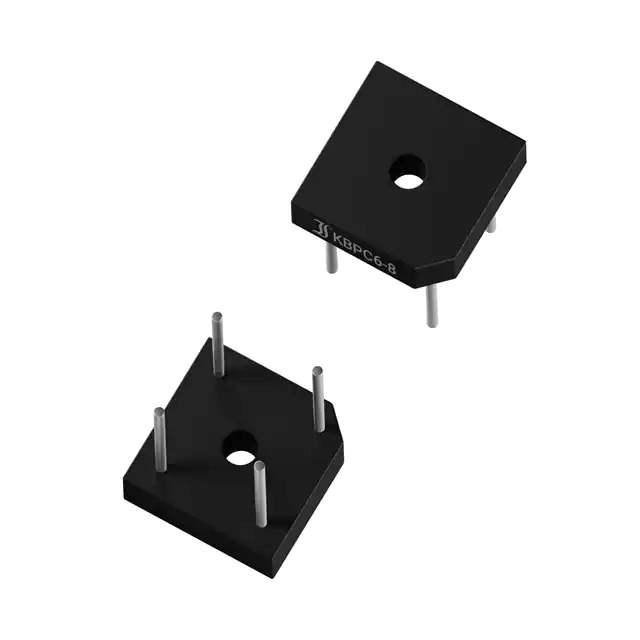

KBPC602 Real Image
Same model may have multiple batches, images only for reference.

KBPC602

Part No KBPC602
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description 1PH BRIDGE KBPC 200V 6A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr DIOTEC Electronics Corporation
Package Box
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 3.8 A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 3 A
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Square, KBPC-6
Supplier Device Package KBPC6
Standard Package 200 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
HTSUS 8541.10.0000
Win Source Part Number 610028-KBPC602
Ultra Librarian 3D Model Ultra Librarian KBPC602 CAD Model

Description

The KBPC602 is a bridge rectifier diode in a single-phase configuration.

  • Manufacturer: DIOTEC Electronics Corporation
  • Package: Box
  • Standard Package: 200 pieces
  • Configuration: Single-Phase
  • Average Rectified Current: 3.8 A
  • Forward Voltage: 1.2 V @ 3 A
  • Reverse Leakage Current: 5 µA @ 200 V
  • Mounting Type: Through-hole
  • Package Type: 4-square, KBPC-6
  • Product Status: Active
