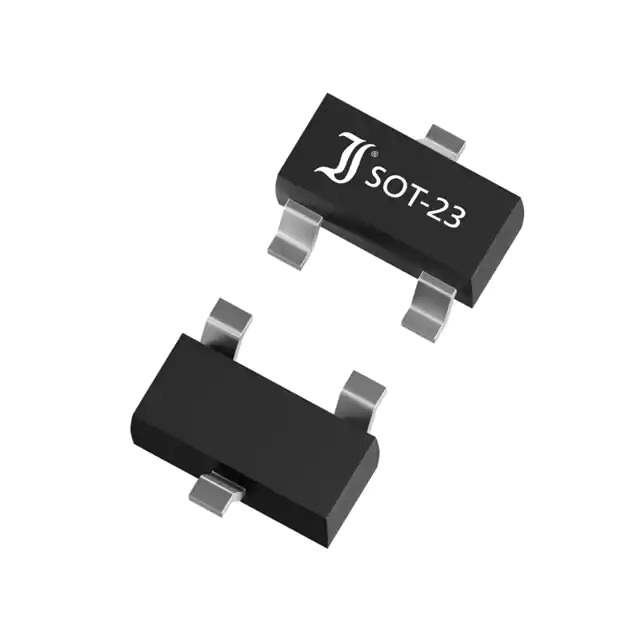

PSOT15C Real Image
Same model may have multiple batches, images only for reference.

PSOT15C

Part No PSOT15C
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 15VWM 30VC SOT23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 30V
Current - Peak Pulse (10/1000µs) 17A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 60pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 657520-PSOT15C
Ultra Librarian 3D Model Ultra Librarian PSOT15C CAD Model

Description

The 657520-PSOT15C is a bidirectional Zener type transient voltage suppressor diode suitable for general-purpose circuit protection.

  • Package: SOT-23-3 (TO-236)
  • Packaging: Tape & Reel
  • Standard Package: 3,000 pieces
  • Reverse Standoff Voltage: 15V
  • Breakdown Voltage: 16.7V
  • Clamping Voltage (Max): 30V @ 17A (8/20µs)
  • Peak Pulse Power: 500W
  • Capacitance: 60pF @ 1MHz
  • Operating Temperature: -55°C to 150°C (TJ)
  • Product Status: Active
  • Manufacturer: DIOTEC Electronics Corporation
