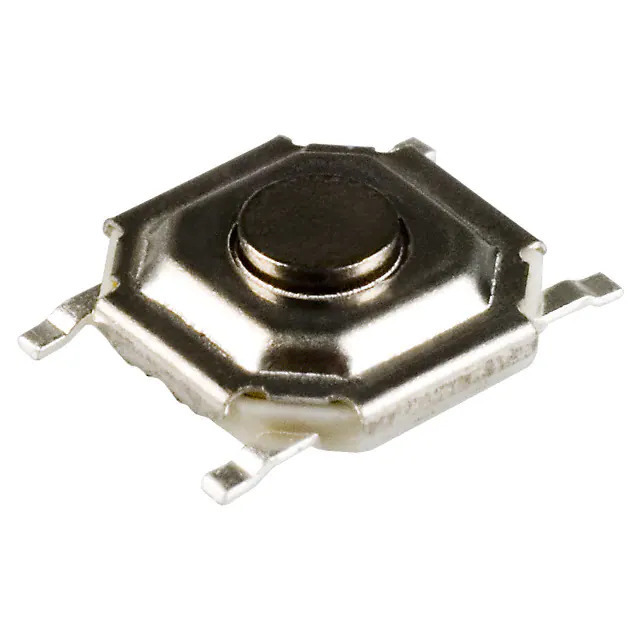

Same model may have multiple batches, images only for reference.

TL3342F260QG

Name: TL3342F260QG
Brand: E-Switch
SKU: 1376499
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TL3342F260QG
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	TL3342F260QG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	E-Switch
Series	TL3342
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	1.54mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	4.90mm x 4.90mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	260gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-20°C ~ 70°C
Actuator Material	Polyphenylene Sulfide (PPS)
Switch Travel	-
Mechanical Life	100,000 Cycles
Base Product Number	TL3342
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376499-TL3342F260QG
Ultra Librarian 3D Model	Ultra Librarian TL3342F260QG CAD Model

Alternative Products

Description

The TL3342F260QG is a tactile switch from E-Switch.

Mounting Type: Surface Mount
Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: Standard
Actuator Material: Polyphenylene Sulfide (PPS)
Operating Force: 260gf
Mechanical Life: 100,000 Cycles
Actuator Height off PCB: 1.54mm
Outline Dimension: 4.90mm x 4.90mm
Illumination: Non-Illuminated
Contact Rating: 0.05A @ 12VDC
