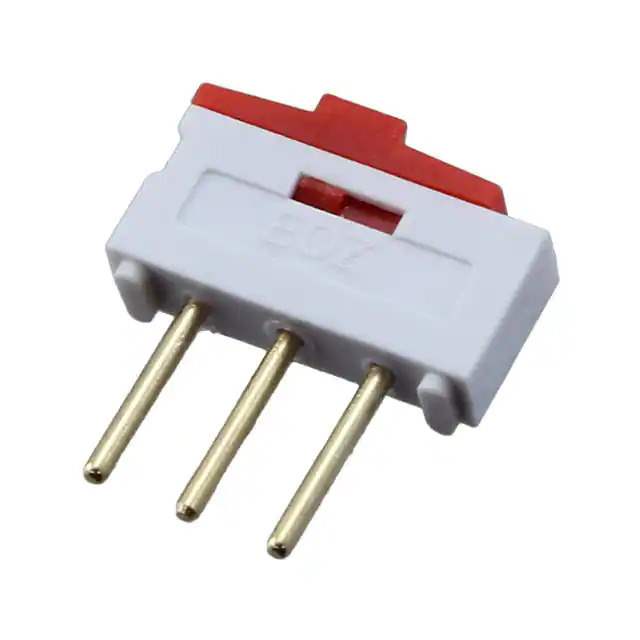

09.03201.02 Real Image
Same model may have multiple batches, images only for reference.

09.03201.02

Part No 09.03201.02
Manufacturer EAO
Catalog Slide Switches
Description SWITCH SLIDE SPDT 0.5A 24V / Slide Switch SPDT Through Hole
Datasheet
09.03201.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr EAO
Series 1K2
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 24 V
Actuator Type Flush
Actuator Length 1.40mm
Contact Material Nickel
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 1.60mm
Mechanical Life 10,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 09.03201
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
California Prop 65 Warning Information
Win Source Part Number 849217-09.03201.02
Ultra Librarian 3D Model Ultra Librarian 09.03201.02 CAD Model

Description

The 849217-09.03201.02 is a slide switch with a SPDT circuit configuration. EAO manufactures the 849217-09.03201.02.

  • Circuit Configuration: SPDT
  • Series: 1K2
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Contact Material: Nickel
  • Voltage Rating: 24 V DC
  • Current Rating: 500mA (DC)
  • Switch Function: On-On
  • Actuator Type: Flush
  • Actuator Length: 1.40mm
  • Switch Travel: 1.60mm
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 10,000 cycles
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
