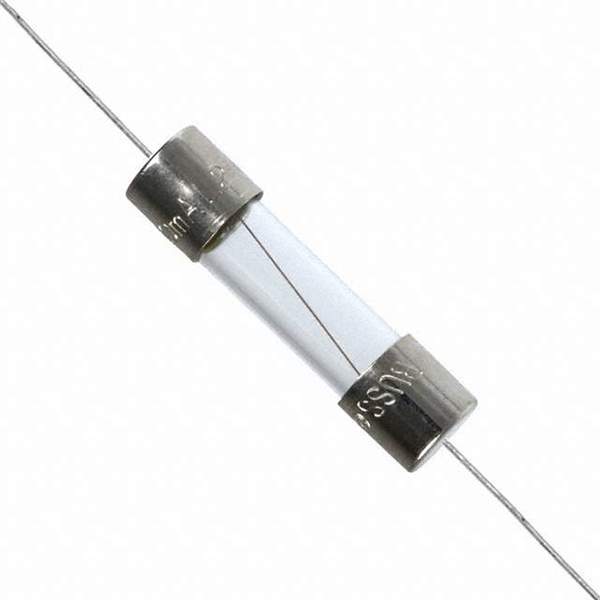

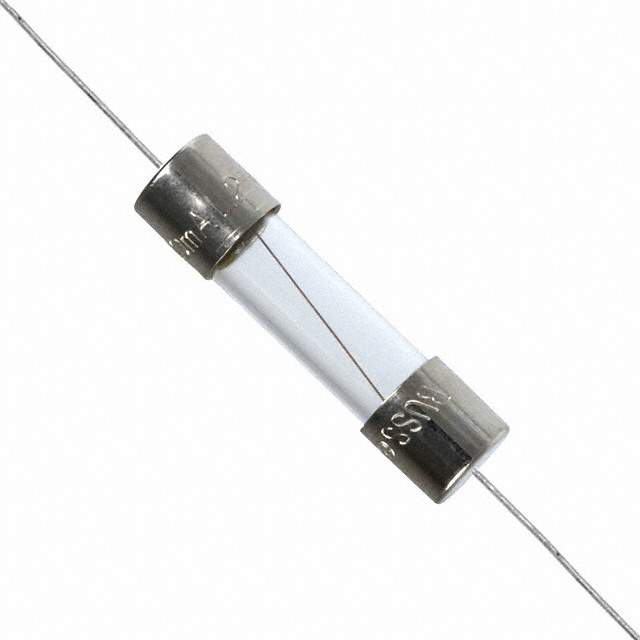

BK/S506-V-315-R Real Image
Same model may have multiple batches, images only for reference.

BK/S506-V-315-R

Part No BK/S506-V-315-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE GLASS 315MA 250VAC 5X20MM / 315 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
Datasheet
BK/S506-V-315-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series S506
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 315 mA
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.621
Approval Agency BSI, CCC, CSA, IMQ, SEMKO, UR, VDE
Dimension 0.218" Dia x 0.831" L (5.54mm x 21.10mm)
DC Cold Resistance 0.45 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Names BK-S506-V-315-R
Standard Package 100
Win Source Part Number 1022342-BK/S506-V-315-R
Ultra Librarian 3D Model Ultra Librarian BK/S506-V-315-R CAD Model

Description

The Eaton Bussmann 1022342-BK/S506-V-315-R is a glass cartridge fuse with a voltage rating of 250V AC and a current rating of 315mA.

  • Response Time: slow-blow
  • Breaking Capacity: 35A @ rated voltage
  • DC Cold Resistance: 0.45Ω
  • Melting I2t: 0.621
  • Mountable: through-hole
  • Package Size: 5mm x 20mm (Axial)
  • Standard Package: 100
  • Suitable for: electronic devices that require protection from overcurrent and short circuits
  • ECCN: EAR99
  • HTSUS: 8536.10.0020
