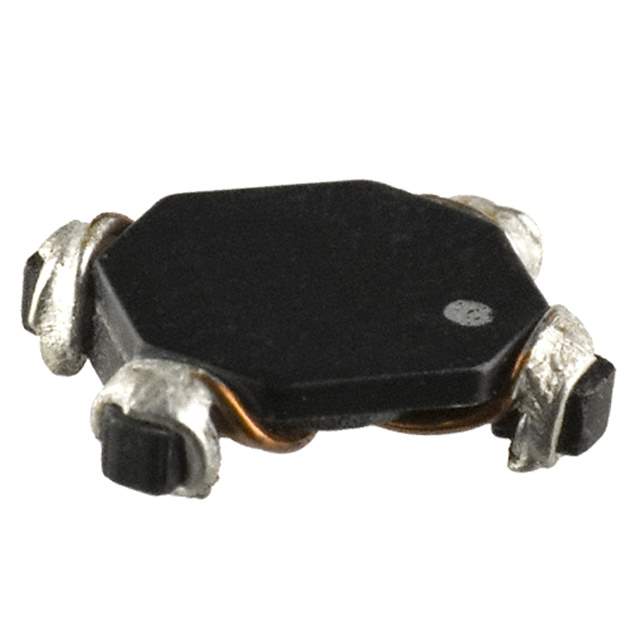

CMS1-8-R Real Image
Same model may have multiple batches, images only for reference.

CMS1-8-R

Part No CMS1-8-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 51.2UH 2.2A 2LN SMD  /  51.2 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2.2A DCR 26mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 51.2 µH @ 100 kHz
Current Rating (Max) 2.2A
DC Resistance (DCR) (Max) 26mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.370" L x 0.283" W (9.40mm x 7.20mm)
Height (Max) 0.102" (2.60mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 283-4050-2,283-4050-1,CMS1-8-R-ND,CMS1-8-ND,CMS18R,CMS1-8,283-4050-6
Standard Package 2,000
Win Source Part Number 1052721-CMS1-8-R
Ultra Librarian 3D Model Ultra Librarian CMS1-8-R CAD Model

Description

CMS1-8-R is a common mode choke from Eaton - Electronics Division that comes in tape and reel package.

  • Suitable for: Power line filters
  • Maximum Current Rating: 2.2A
  • Inductance: 51.2 µH @ 100 kHz
  • DC Resistance: 26mOhm
  • Temperature Range: -40°C to 160°C
  • Compliant With: ECCN, MSL Level, and HTSUS regulations
