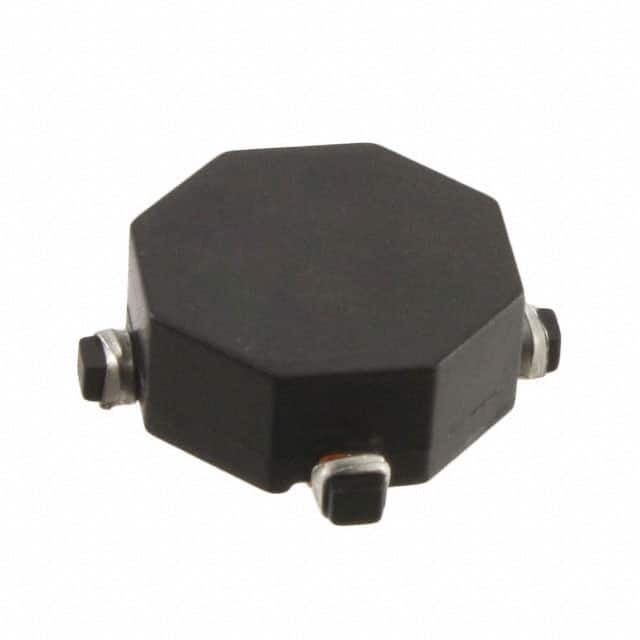

CTX100-1P-R Eaton Bussmann
Same model may have multiple batches, images only for reference.

CTX100-1P-R

Part No CTX100-1P-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 99.01UH SMD / Unshielded 2 Coil Inductor Array 396.06 µH Inductance - Connected in Series 99.01 µH Inductance - Connected in Parallel 557mOhm Max DC Resistance (DCR) - Parallel 540 mA Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series Econo-Pac™
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 99.01 µH
Inductance - Connected In Series 396.06 µH
Tolerance ±20%
Current Rating - Parallel 540 mA
Current Rating - Series 270 mA
DC Resistance (DCR) - Parallel 557mOhm Max
DC Resistance (DCR) - Series 2.227Ohm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.165" (4.19mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CTX1001PR,513-1036-2,513-1036-1,CTX100-1P,513-1036-6
Standard Package 1,100
Win Source Part Number 1150595-CTX100-1P-R
Ultra Librarian 3D Model Ultra Librarian CTX100-1P-R CAD Model

Description

The Eaton - Electronics Division CTX100-1P-R is a two-coil inductor array from the Econo-Pac™ series.

  • Tolerance: ±20%
  • Height: 0.165" (4.19mm)
  • Inductance (Series): 396.06 µH
  • Inductance (Parallel): 99.01 µH
  • Current Rating (Parallel): 540 mA
  • Current Rating (Series): 270 mA
  • DC Resistance (DCR, Parallel): 557mOhm Max
  • DC Resistance (DCR, Series): 2.227Ohm Max
  • Packaging: Nonstandard
  • Mounting: SMD (SMT)
  • Operating Temperature: -40°C ~ 85°C
  • HTSUS: 8504.50.4000
  • MSL Level: 1 (unlimited)
