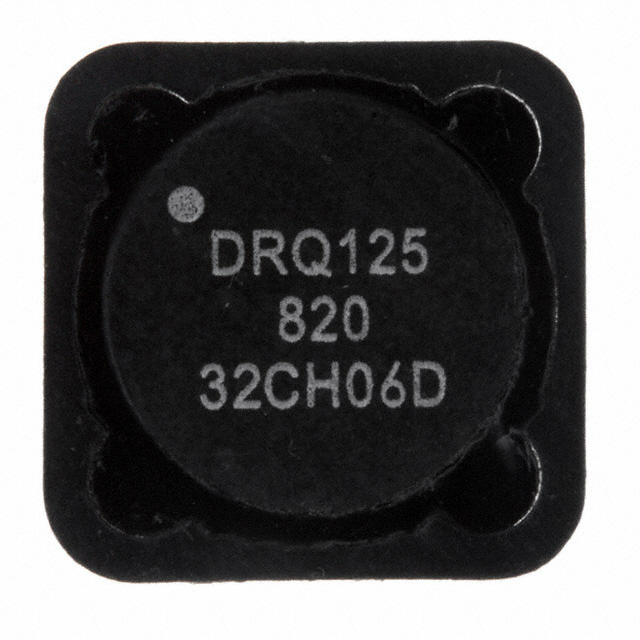

Same model may have multiple batches, images only for reference.
DRQ125-4R7-R Eaton Bussmann – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DRQ125-4R7-R

Part No DRQ125-4R7-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 5.274UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Coils 2
Inductance - Connected In Parallel 5.274 µH
Inductance - Connected In Series 21.1 µH
Tolerance ±20%
Current Rating - Parallel 7.18 A
Current Rating - Series 3.59 A
Current Saturation - Parallel 9.71 A
Current Saturation - Series 4.86 A
DC Resistance (DCR) - Parallel 10.5mOhm
DC Resistance (DCR) - Series 42mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.236\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1532039-DRQ125-4R7-R
Ultra Librarian 3D Model Ultra Librarian DRQ125-4R7-R CAD Model
