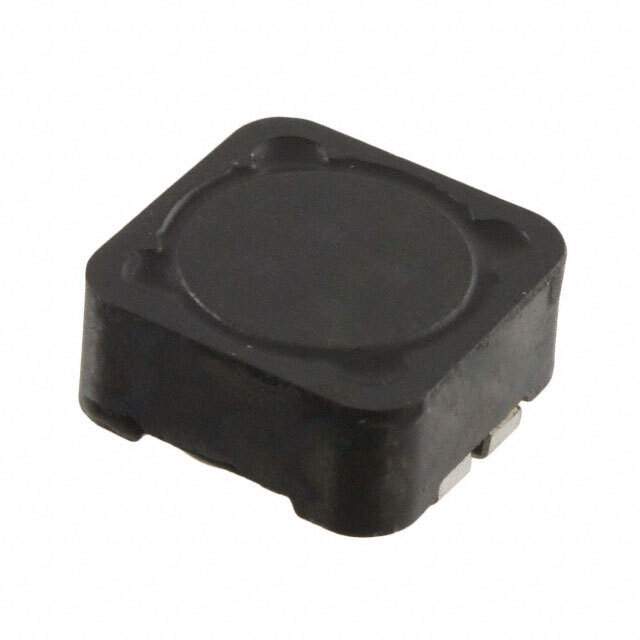

DRQ125-6R8-R Real Image
Same model may have multiple batches, images only for reference.

DRQ125-6R8-R

Part No DRQ125-6R8-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 6.588UH SMD / Shielded 2 Coil Inductor Array 26.35 µH Inductance - Connected in Series 6.588 µH Inductance - Connected in Parallel 12.3mOhm DC Resistance (DCR) - Parallel 6.64 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 6.588 µH
Inductance - Connected In Series 26.35 µH
Tolerance ±20%
Current Rating - Parallel 6.64 A
Current Rating - Series 3.32 A
Current Saturation - Parallel 8.68 A
Current Saturation - Series 4.34 A
DC Resistance (DCR) - Parallel 12.3mOhm
DC Resistance (DCR) - Series 49.2mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.236" (6.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names DRQ125-6R8,DRQ125-6R8R,513-1287-1,513-1287-2,DRQ1256R8R,DRQ125-6R8-R-ND,DRQ125-6R8-ND,513-1287-6
Standard Package 600
Win Source Part Number 1024122-DRQ125-6R8-R
Ultra Librarian 3D Model Ultra Librarian DRQ125-6R8-R CAD Model

Description

The Eaton-Electronics Division DRQ125-6R8-R Inductor Array is a high-quality signal transformer that is designed for use in a variety of applications. Bold the product name, DRQ125-6R8-R and manufacturer, Eaton-Electronics Division

  • Inductance (Series): 26.35 µH
  • Inductance (Parallel): 6.588 µH
  • Current Rating (Parallel): 6.64 A
  • Current Rating (Series): 3.32 A
  • DC Resistance (DCR) (Parallel): 12.3mOhm
  • DC Resistance (DCR) (Series): 49.2mOhm
  • Shielded: Yes
  • Package/Case: Nonstandard
  • Temperature Range: -40°C to 125°C
