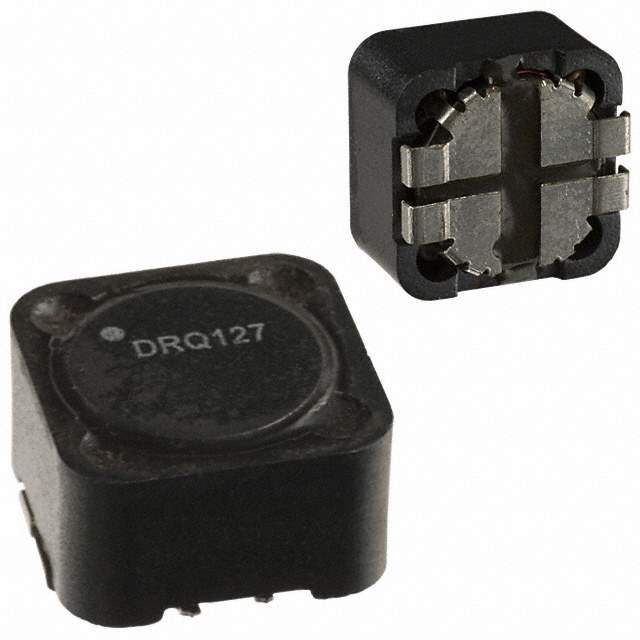

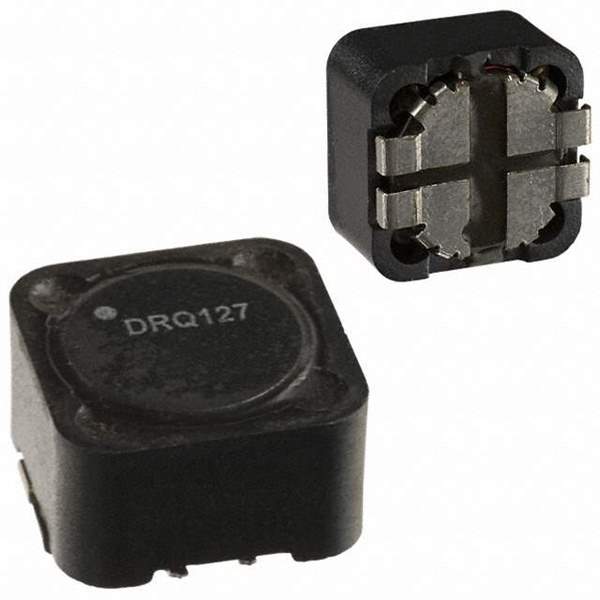

DRQ127-3R3-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-3R3-R

Part No DRQ127-3R3-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 2.831UH SMD  /  Shielded 2 Coil Inductor Array 11.32 µH Inductance - Connected in Series 2.831 µH Inductance - Connected in Parallel 5.67mOhm DC Resistance (DCR) - Parallel 10.4 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 2.831 µH
Inductance - Connected In Series 11.32 µH
Tolerance ±20%
Current Rating - Parallel 10.4 A
Current Rating - Series 5.23 A
Current Saturation - Parallel 21.5 A
Current Saturation - Series 10.8 A
DC Resistance (DCR) - Parallel 5.67mOhm
DC Resistance (DCR) - Series 22.9mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names DRQ127-3R3-ND,DRQ127-3R3-R-ND,513-1308-1,513-1308-2,DRQ127-3R3R,DRQ127-3R3,Q9652717A,513-1308-6,DRQ1273R3R
Standard Package 350
Win Source Part Number 1000180-DRQ127-3R3-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-3R3-R CAD Model

Description

The 1000180-DRQ127-3R3-R is a signal transformer designed to meet the needs of various electronic applications. It is a high popularity product with a nonstandard package/case.

  • Popularity: High
  • Package/Case: Nonstandard
  • Height: 0.315 inches
  • Dimension: 0.492 inches L x 0.492 inches W
  • Shielded: Yes
  • Operating Temperature Range: -40°C to 125°C
  • Parallel Current Rating: 10.4A
  • Series Current Rating: 5.23A
