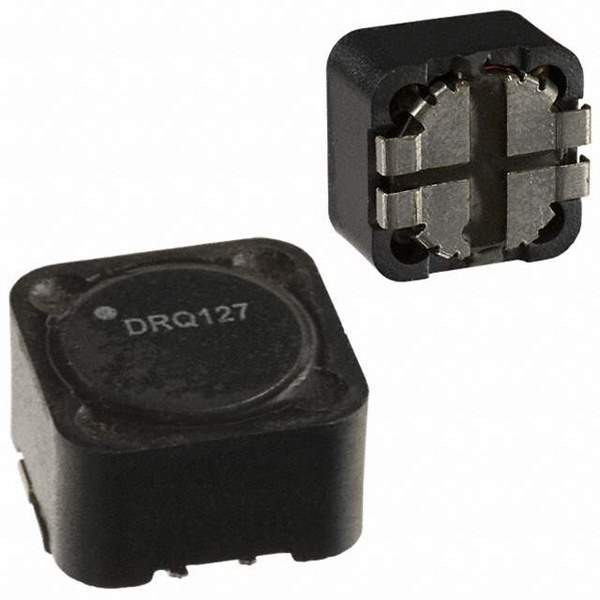

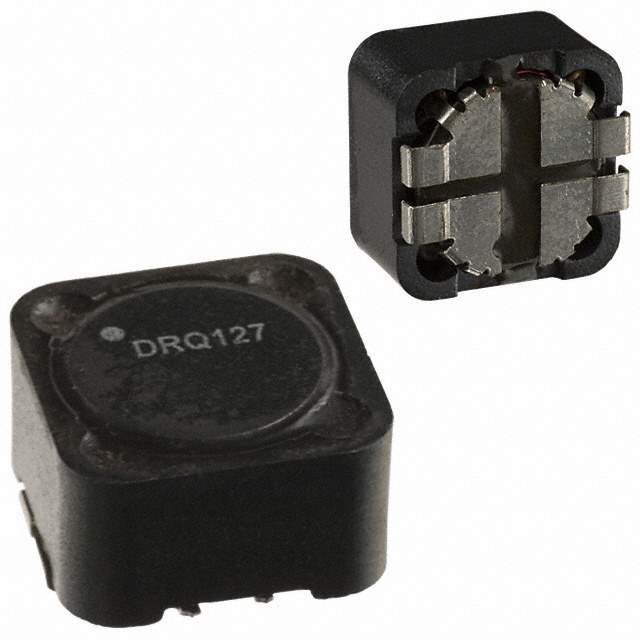

DRQ127-470-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-470-R

Part No DRQ127-470-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 47.05UH SMD  /  Shielded 2 Coil Inductor Array 188.2 µH Inductance - Connected in Series 47.05 µH Inductance - Connected in Parallel 71.9mOhm DC Resistance (DCR) - Parallel 2.95 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 47.05 µH
Inductance - Connected In Series 188.2 µH
Tolerance ±20%
Current Rating - Parallel 2.95 A
Current Rating - Series 1.47 A
Current Saturation - Parallel 5.28 A
Current Saturation - Series 2.64 A
DC Resistance (DCR) - Parallel 71.9mOhm
DC Resistance (DCR) - Series 288mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names DRQ127-470-ND,DRQ127-470R,513-1311-6,DRQ127-470-R-ND,DRQ127470R,513-1311-2,513-1311-1,DRQ127-470
Standard Package 350
Win Source Part Number 1182098-DRQ127-470-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-470-R CAD Model

Description

The DRQ127-470-R is a shielded inductor array designed to be used in various applications.

  • Mounting Type: Surface Mount (SMD)
  • Packaging: Tape and Reel
  • Number of Coils: 2
  • Package/Case: Nonstandard
  • Inductance (Series): 188.2 µH
  • Inductance (Parallel): 47.05 µH
  • Current Rating (Series): 1.47 A
  • Current Rating (Parallel): 2.95 A
  • DC Resistance (DCR) (Series): 288 mOhm
  • DC Resistance (DCR) (Parallel): 71.9 mOhm
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
