Same model may have multiple batches, images only for reference.

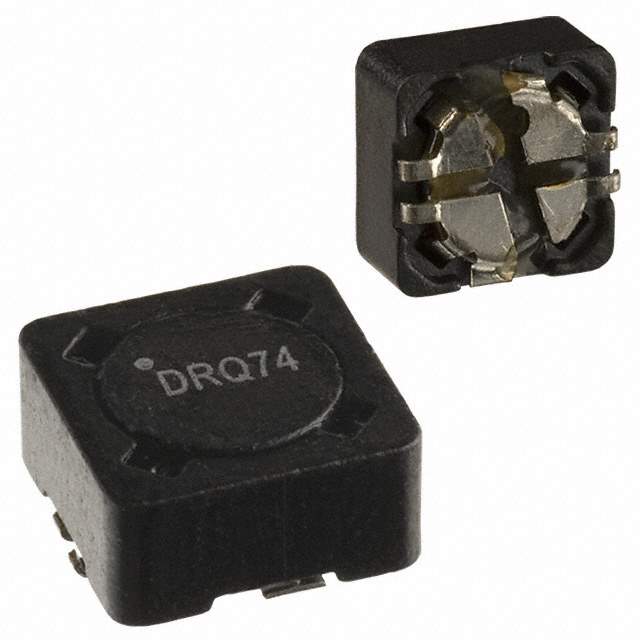

DRQ74-4R7-R Real Image
Same model may have multiple batches, images only for reference.

DRQ74-4R7-R

Part No DRQ74-4R7-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 5.182UH SMD  /  Shielded 2 Coil Inductor Array 20.73 µH Inductance - Connected in Series 5.182 µH Inductance - Connected in Parallel 25.4mOhm DC Resistance (DCR) - Parallel 3.34 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 5.182 µH
Inductance - Connected In Series 20.73 µH
Tolerance ±20%
Current Rating - Parallel 3.34 A
Current Rating - Series 1.67 A
Current Saturation - Parallel 4.37 A
Current Saturation - Series 2.19 A
DC Resistance (DCR) - Parallel 25.4mOhm
DC Resistance (DCR) - Series 102mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height 0.175" (4.45mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names DRQ74-4R7-R-ND,513-1264-1,513-1264-2,DRQ74-4R7R,DRQ74-4R7-ND,513-1264-6,DRQ74-4R7,DRQ744R7R
Standard Package 1,100
Win Source Part Number 1218576-DRQ74-4R7-R
Ultra Librarian 3D Model Ultra Librarian DRQ74-4R7-R CAD Model

Description

The DRQ74-4R7-R is an inductor array from Eaton - Electronics Division. It is designed for use in various applications and has a height of 0.175 inches.

  • Height: 0.175 inches
  • Number of Coils: Two
  • Connection: Series or Parallel
  • Tolerance: ±20%
  • Package/Case Size: Nonstandard
  • Current Rating (Series): 1.67A
  • Current Rating (Parallel): 3.34A
  • Current Saturation (Series): 2.19A
  • Current Saturation (Parallel): 4.37A
  • DC Resistance (Series): 102mOhm
  • DC Resistance (Parallel): 25.4mOhm
  • Operating Temperature: -40°C to 125°C
  • MSL Level: Unlimited
