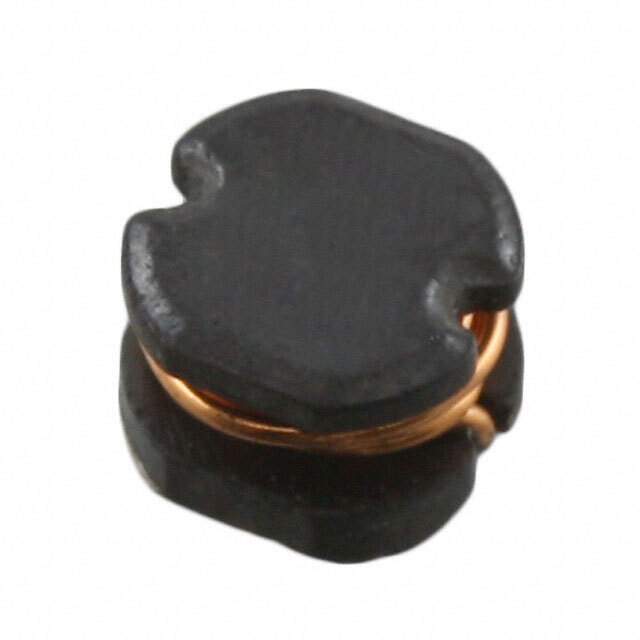

Same model may have multiple batches, images only for reference.

LD1-390-R

Name: LD1-390-R
Brand: Eaton Bussmann
SKU: 1054577
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LD1-390-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 39UH 630MA 587MOHM SMD / 39 µH Unshielded Drum Core, Wirewound Inductor 630 mA 587mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	LD
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	39 µH
Tolerance	±20%
Current Rating (Amps)	630 mA
Current - Saturation (Isat)	680mA
Shielding	Unshielded
DC Resistance (DCR)	587mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max)	0.126" (3.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	2,000
Win Source Part Number	1054577-LD1-390-R
Ultra Librarian 3D Model	Ultra Librarian LD1-390-R CAD Model

Alternative Products

Description

The LD1-390-R is a fixed inductor from the LD series of drum core wirewound type.

Inductance: 39µH
Tolerance: ±20%
DC Resistance: 587mOhm max
Current Rating: 630mA
Mounting Type: SMD (SMT)
Temperature Range: -40°C to 125°C
Supplier: Eaton - Electronics Division
