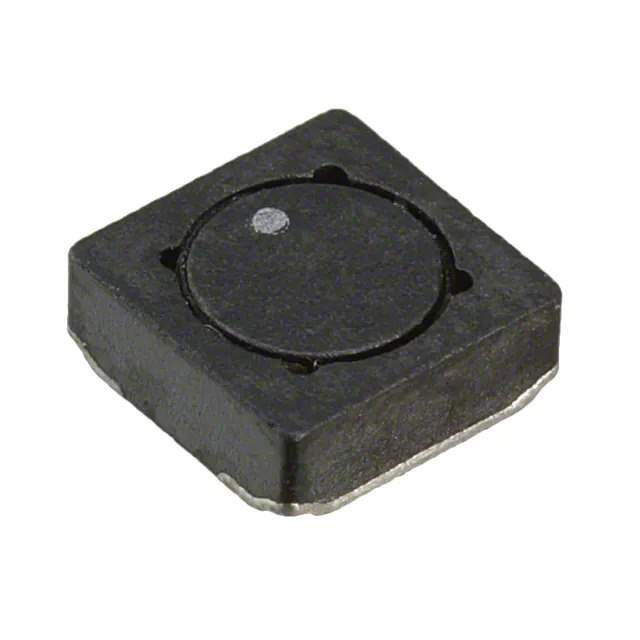

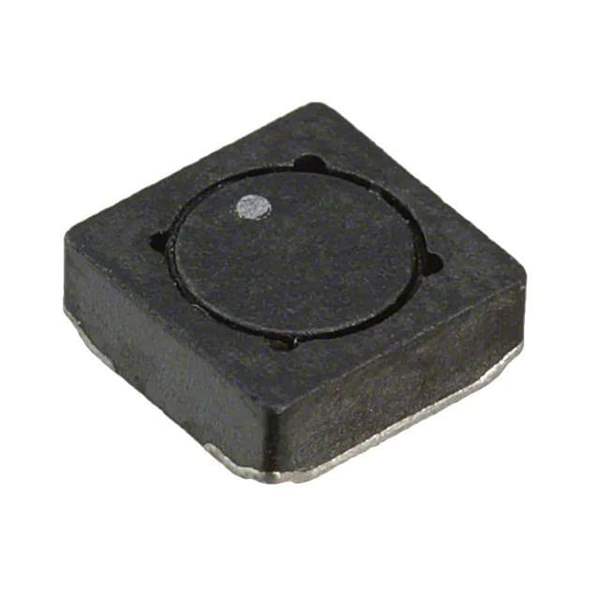

SD20-1R2-R Real Image
Same model may have multiple batches, images only for reference.

SD20-1R2-R

Part No SD20-1R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 1.2UH 3.07A 27.5 MOHM / 1.2 μH Shielded Drum Core, Wirewound Inductor 3.07 A 27.5mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series SD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.2 µH
Tolerance ±20%
Current Rating (Amps) 3.07 A
Current - Saturation (Isat) 2.55A
Shielding Shielded
DC Resistance (DCR) 27.5mOhm
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 2,900 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 893926-SD20-1R2-R
Ultra Librarian 3D Model Ultra Librarian SD20-1R2-R CAD Model

Description

The SD20-1R2-R is a drum core, wirewound inductor from the SD series.

  • Type: shielded inductor
  • Size: 0.205" L x 0.205" W (5.20mm x 5.20mm)
  • Mounting: surface mount inductor
  • Packaging: tape and reel
  • Inductance: 1.2µH
  • Maximum Seated Height: 0.079" (2.00mm)
  • Tolerance: ±20%
  • DC Resistance: 27.5mOhm
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: Eaton Bussmann
  • Status: currently active
