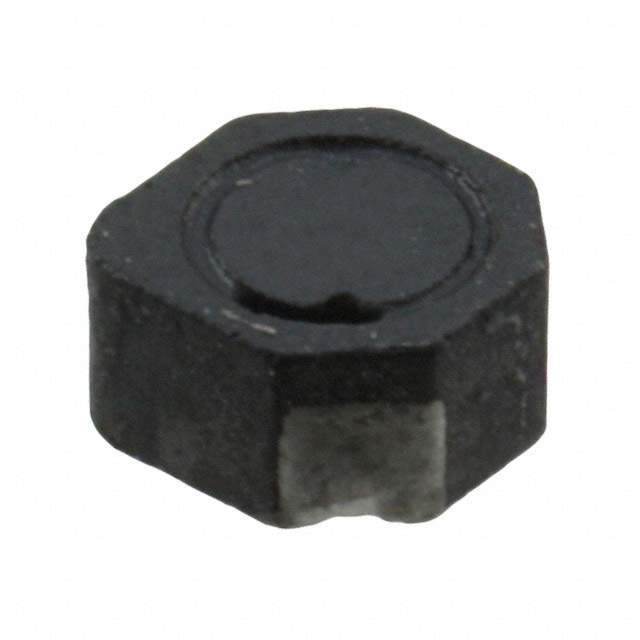

Same model may have multiple batches, images only for reference.

SD3118-6R8-R

Name: SD3118-6R8-R
Brand: Eaton Bussmann
SKU: 1330645
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SD3118-6R8-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 6.8UH 850MA 232MOHM SM / 6.8 µH Shielded Drum Core, Wirewound Inductor 850 mA 232mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Eaton - Electronics Division
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	6.8 µH
Tolerance	±30%
Current Rating (Amps)	850 mA
Current - Saturation (Isat)	1.12A
Shielding	Shielded
DC Resistance (DCR)	232mOhm
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.122" L x 0.122" W (3.10mm x 3.10mm)
Height - Seated (Max)	0.071" (1.80mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	4,100
Win Source Part Number	1330645-SD3118-6R8-R
Ultra Librarian 3D Model	Ultra Librarian SD3118-6R8-R CAD Model

Alternative Products

Description

The Eaton - Electronics Division 1330645-SD3118-6R8-R is a shielded drum core, wirewound inductor that has a 6.8 µH inductance and a tolerance of ±30%.

Inductance: 6.8 µH
Tolerance: ±30%
DC Resistance: 232mOhm
Current Rating: 850 mA
Core Material: Ferrite
Mounting: Surface
Temperature Range: -40°C to 125°C
Case/Package: Nonstandard
Compliance: RoHS compliant
MSL Level: 1 (Unlimited)
