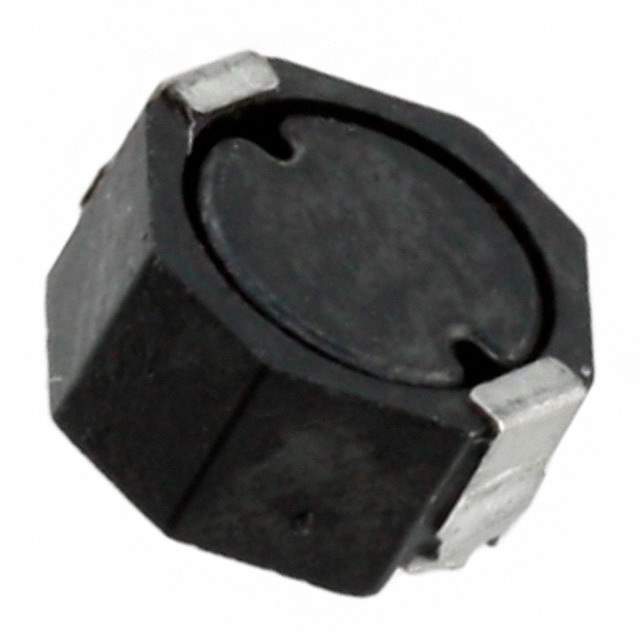

Same model may have multiple batches, images only for reference.

SD53-4R7-R

Name: SD53-4R7-R
Brand: Eaton Bussmann
SKU: 511742
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SD53-4R7-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 2.01A 45 MOHM
Datasheet	SD53-4R7-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	4.7μH
Tolerance	±20%
Current Rating	2.01A
Current - Saturation	2.1A
DC Resistance (DCR)	45 mOhm Max
Temperature Range - Operating	-40°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.118" (3.00mm)
Win Source Part Number	1095011-SD53-4R7-R
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian SD53-4R7-R CAD Model

Alternative Products

Description

The Eaton 1095011-SD53-4R7-R is a wirewound inductor with a current rating of 2.01A and an inductance of 4.7μH.

Core Material: Ferrite
Tolerance: ±20%
Saturation Current: 2.1A
DC Resistance: 45 mOhm max
Temperature Range: -40°C to 125°C
Mounting: SMD (SMT)
Height: 0.118" (3.00mm)
