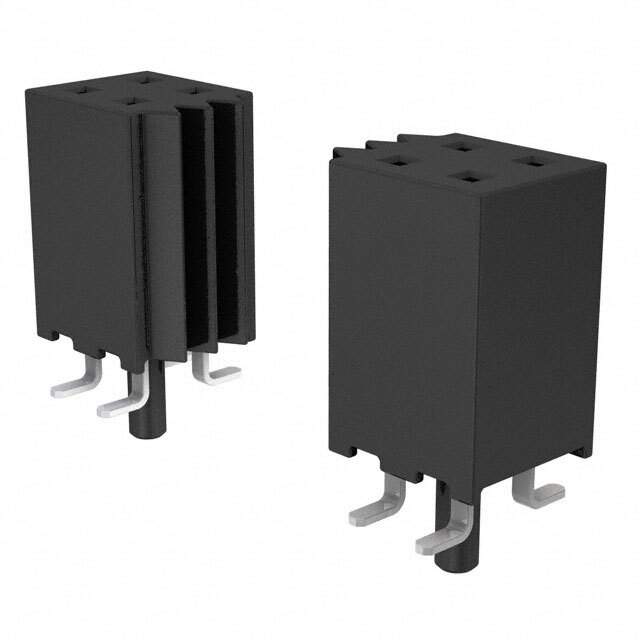

SQW-112-01-L-D-VS-A

Name: SQW-112-01-L-D-VS-A
Brand: Samtec Inc.
SKU: 1292228
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SQW-112-01-L-D-VS-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQW-112-01-L-D-VS-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.300" (7.62mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Guide
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-112
Other Names	SQW-112-01-L-D-VS-A,SAM12892
Standard Package	23
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292228-SQW-112-01-L-D-VS-A
Ultra Librarian 3D Model	Ultra Librarian SQW-112-01-L-D-VS-A CAD Model

Alternative Products

Description

The Samtec Inc. SQW-112-01-L-D-VS-A is a Receptacle type connector with a Board Guide feature.

Rows: 2
Number of Positions: 24
Contact Material: Phosphor Bronze
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0μin (0.25μm)
Contact Finish - Post: Tin
Temperature Range: -55°C ~ 125°C
Current Rating: 3.8A per Contact
Mounting: SMD (SMT)
Application: Rectangular Connectors - Headers, Receptacles, Female Sockets
