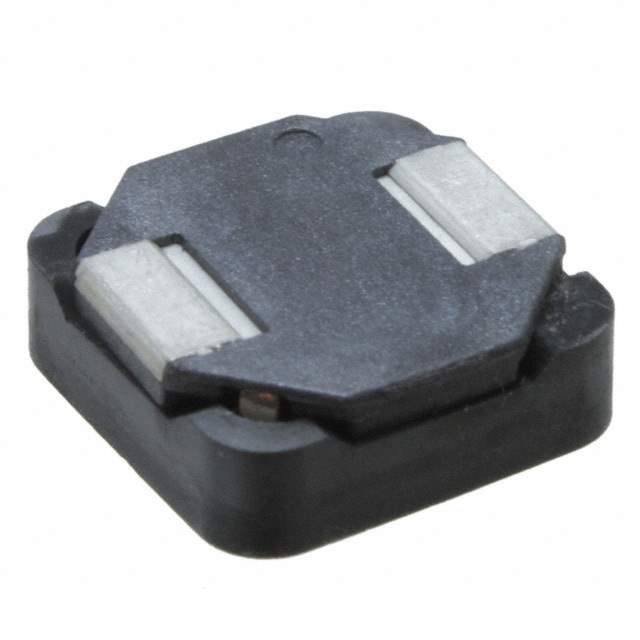

Same model may have multiple batches, images only for reference.

DRA124-220-R

Name: DRA124-220-R
Brand: Eaton Bussmann
SKU: 449002
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DRA124-220-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 22UH 2.44A 71 MOHM SMD
Datasheet	DRA124-220-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton
Packaging	Reel - TR
Status	Active
Type	Wirewound
Inductance	22μH
Tolerance	±20%
Current Rating	2.44A
Current - Saturation	4.16A
DC Resistance (DCR)	71 mOhm
Ratings	AEC-Q200
Temperature Range - Operating	-40°C to 165°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.177" (4.50mm)
Win Source Part Number	1034053-DRA124-220-R
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian DRA124-220-R CAD Model

Alternative Products

Description

The Eaton DRA124-220-R is a wirewound inductor with an inductance of 22μH and a current rating of 2.44A.

DC Resistance (DCR): 71 mOhm
Tolerance: ±20%
Current Saturation: 4.16A
AEC-Q200 Rated: Yes
