Same model may have multiple batches, images only for reference.

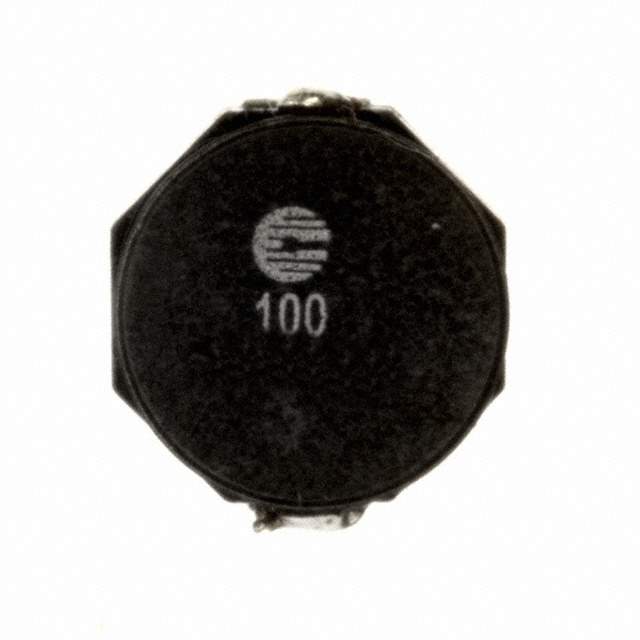

SD8350-100-R Real Image
Same model may have multiple batches, images only for reference.

SD8350-100-R

Part No SD8350-100-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 10UH 3.2A 36 MOHM SMD  /  10 µH Shielded Drum Core, Wirewound Inductor 3.2 A 36mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series SD8350
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±30%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 4A
Shielding Shielded
DC Resistance (DCR) 36mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 513-1503-1,SD8350100R,513-1503-2,513-1503-6
Standard Package 750
Win Source Part Number 1041172-SD8350-100-R
Ultra Librarian 3D Model Ultra Librarian SD8350-100-R CAD Model

Description

The SD8350 series inductor from Eaton is a drum core, wirewound type inductor with a shielding feature.

  • Core Type: Drum Core
  • Type: Wirewound
  • Shielding: Yes
  • Inductance: 10 µH
  • DC Resistance (DCR): 36mOhm Max
  • Current Rating: 3.2 A
  • Material: Ferrite
  • Tolerance: ±30%
  • Frequency Self-Resonant: Not Specified
  • Q @ Freq: Not Specified
  • Height: 0.118" (3.00mm)
  • Package/Case: Nonstandard
  • Packaging: Tape and Reel
  • Standard Package: 750 pieces
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT)
  • Alternative Parts: SRU8043-100Y, SRU1038A-100Y, SRU1063-100Y, 744071100, 744066100, and 744065100
  • Applications: Automotive, Industrial, and Consumer Electronics
