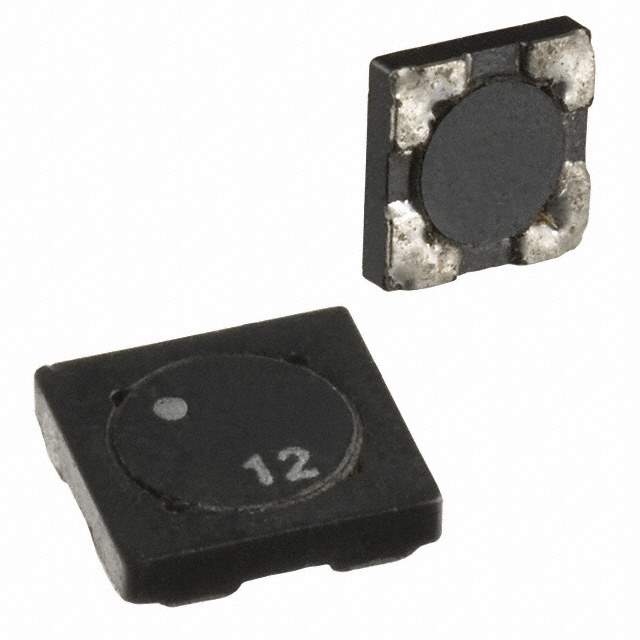

SDQ12-150-R Real Image
Same model may have multiple batches, images only for reference.

SDQ12-150-R

Part No SDQ12-150-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 15.21UH SMD
Datasheet
SDQ12-150-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 60.84μH
Inductance - Connected In Parallel 15.21μH
Tolerance ±20%
Current Rating - Parallel 658mA
Current Rating - Series 329mA
Current Saturation - Parallel 779mA
Current Saturation - Series 390mA
DC Resistance (DCR) - Parallel 576.6 mOhm
DC Resistance (DCR) - Series 2.31 Ohm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height 0.047" (1.19mm)
Win Source Part Number 1095046-SDQ12-150-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDQ12-150-R CAD Model

Description

The SDQ12-150-R is an electronic component manufactured by Eaton.

  • Category: Inductors, coils, chokes
  • Popularity: Medium
  • Tolerance: ±20%
  • Height: 0.047" (1.19mm)
  • Inductance (Parallel): 15.21μH
  • Number of Coils: 2
  • Current Rating (Parallel): 658mA
