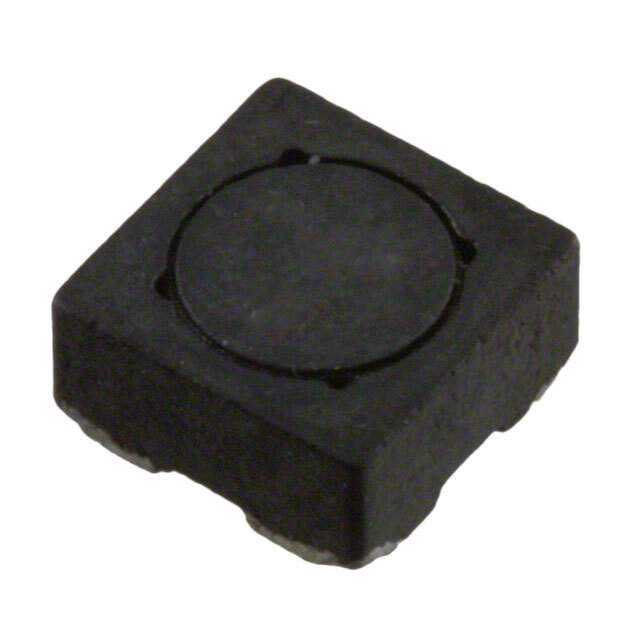

SDQ25-151-R Real Image
Same model may have multiple batches, images only for reference.

SDQ25-151-R

Part No SDQ25-151-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 150.2UH SMD / Shielded 2 Coil Inductor Array 600.6 µH Inductance - Connected in Series 150.2 µH Inductance - Connected in Parallel 1.5Ohm DC Resistance (DCR) - Parallel 408 mA Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series SDQ
Package Tape & Reel (TR)
Number of Coils 2
Inductance - Connected In Parallel 150.2 µH
Inductance - Connected In Series 600.6 µH
Tolerance ±20%
Current Rating - Parallel 408 mA
Current Rating - Series 204 mA
Current Saturation - Parallel 328 mA
Current Saturation - Series 164 mA
DC Resistance (DCR) - Parallel 1.5Ohm
DC Resistance (DCR) - Series 6Ohm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height 0.098" (2.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 2,900
Win Source Part Number 976120-SDQ25-151-R
Ultra Librarian 3D Model Ultra Librarian SDQ25-151-R CAD Model

Description

The Eaton - Electronics Division SDQ25-151-R is an array of inductors, coils, and chokes that is widely used in various electronic devices.
