Same model may have multiple batches, images only for reference.

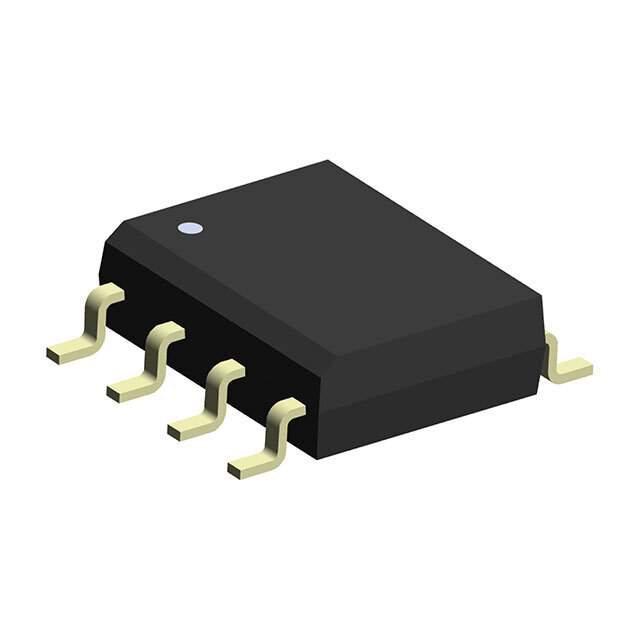

STSP84033U800 Real Image
Same model may have multiple batches, images only for reference.

STSP84033U800

Part No STSP84033U800
Manufacturer Eaton Bussmann
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 15VC 8-SOP / 15V Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount 8-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Eaton - Electronics Division
Series BUSSMANN
Package Tape & Reel
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 25A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection Yes
Applications Ethernet
Capacitance @ Frequency 8pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOP
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1349508-STSP84033U800
Ultra Librarian 3D Model Ultra Librarian STSP84033U800 CAD Model

Description

The BUSSMANN steering TVS diode is a transient voltage suppressor designed to protect Ethernet applications from Eaton - Electronics Division.

  • Voltage Reverse Standoff: 3.3V
  • Maximum Power Peak Pulse: 500W
  • Package: 8-SOIC, Width 3.90mm
  • Mounting Type: Surface Mount
  • Channels: 4, Unidirectional
  • Capacitance: 8pF @ 1MHz
  • Application: Power Line Protection
  • Current Peak Pulse: 25A (8/20µs)
  • Operating Temperature: -55°C to 125°C (TJ)
  • Voltage Clamping: 15V @ Ipp
