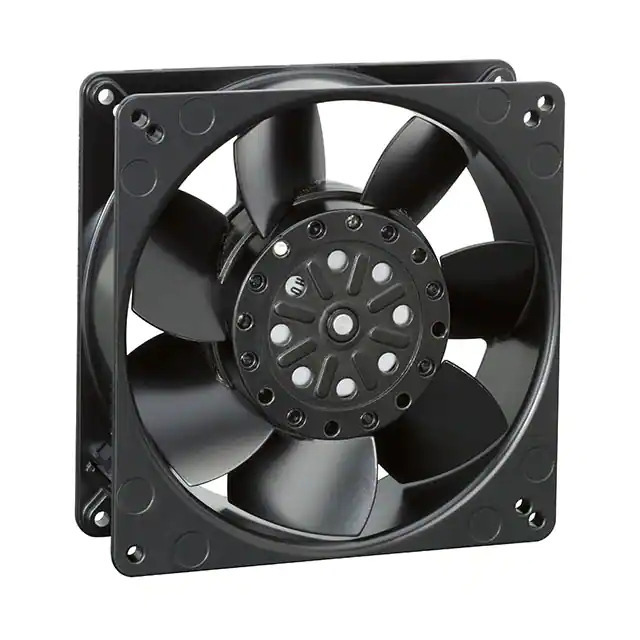

5656S ebm-papst
Same model may have multiple batches, images only for reference.

5656S

Part No 5656S
Manufacturer ebm-papst
Catalog AC Fans
Description FAN AXIAL 135X38MM 230VAC TERM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - AC Fans
Mfr ebm-papst Inc.
Series 5600
Package Bulk
Product Status Active
Voltage - Rated 230VAC
Size / Dimension Square - 135mm L x 135mm H
Width 38.00mm
Air Flow 138.0 CFM (3.86m³/min)
Static Pressure -
Bearing Type Ball
Fan Type Tubeaxial
Features -
Noise 46.0dB(A)
Power (Watts) 30.00W
RPM 2700 RPM
Termination 2 Terminals
Ingress Protection -
Temperature Range - Operating -31 ~ 158°F (-35 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 1.8 lbs (816.5 g)
Current Rating (Amps) -
Voltage Range -
Material - Frame Metal
Material - Blade Metal
Lifetime @ Temp. 45000 Hrs @ 40°C
Base Product Number 5656
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368446-5656S
Ultra Librarian 3D Model Ultra Librarian 5656S CAD Model

Description

The 1368446-5656S is an AC fan from ebm-papst Inc.

  • Series: 5600
  • Shape: Square
  • Dimensions: 135mm L x 135mm H
  • Rated Voltage: 230VAC
  • Power Rating: 30.00W
  • Lifetime: 45000 hours @ 40°C
  • Bearing Type: Ball bearing
  • Speed: 2700 RPM
  • Air Flow: 138.0 CFM
  • Noise Level: 46.0dB(A)
  • Frame Material: Metal
  • Blade Material: Metal
  • Approvals: CE, CSA, UL, VDE
  • Suitable for: Various applications requiring high-performance cooling
