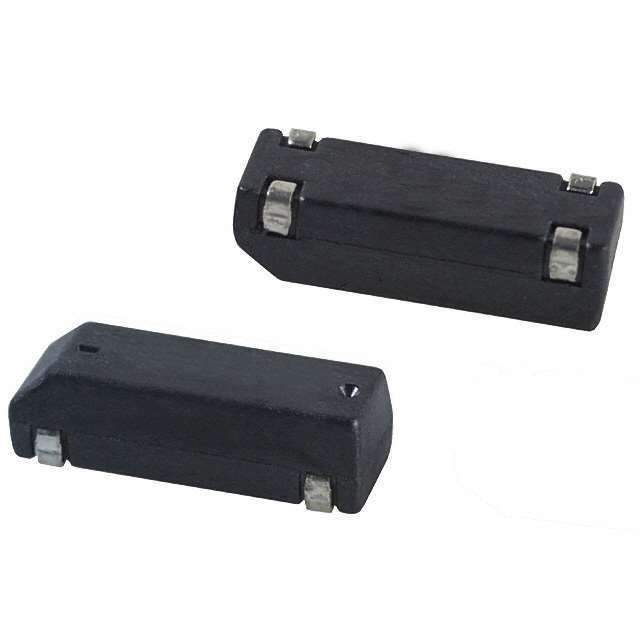

ECS-40-20-7SX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-40-20-7SX-TR

Part No ECS-40-20-7SX-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 4.0000MHZ 20PF SMD
Datasheet
ECS-40-20-7SX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Features ±30ppm Crystal 20pF 4-SOJ, 9.40mm pitch
Manufacturer ECS Inc.
Series ECX-3SX
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -10°C ~ 70°C
Mounting Surface Mount
Package 4-SOJ, 9.40mm pitch
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0030
Other Part Number XC1210CT, XC1210DKR, ECS40207SXTR, XC1210TR, Q3042661B, ECS-40-20-7SX-TR-840, ECS-040-20-7SX-TR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 917789-ECS-40-20-7SX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-40-20-7SX-TR CAD Model

Description

The ECS Inc. ECX-3SX is a crystal oscillator with a ±30ppm crystal and 20pF.

  • Package: 4-SOJ, 9.40mm pitch package
  • Operating Temperature Range: -10°C ~ 70°C
  • Mounting: Surface-mounted
  • Package: Reel-TR
  • Popularity: High-popularity
  • Supply and Demand Status: Balance
  • Win Source Part Number: 917789-ECS-40-20-7SX-TR
