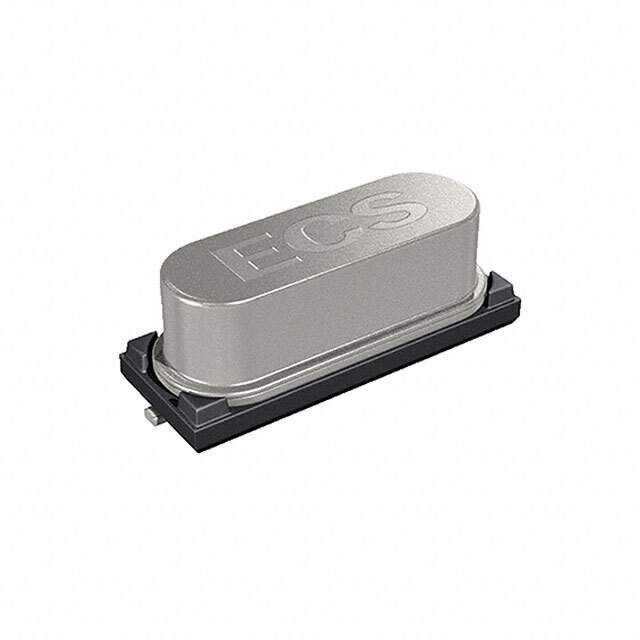

ECS-73-20-7S-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-73-20-7S-TR

Part No ECS-73-20-7S-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 7.3728MHZ 20PF SMD / 7.3728 MHz ±30ppm Crystal 20pF 80 Ohms 4-SOJ, 9.40mm pitch
Datasheet
ECS-73-20-7S-TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-3S
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 7.3728 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SOJ, 9.40mm pitch
Size / Dimension 0.492" L x 0.181" W (12.50mm x 4.60mm)
Height - Seated (Max) 0.146" (3.70mm)
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1348841-ECS-73-20-7S-TR
Ultra Librarian 3D Model Ultra Librarian ECS-73-20-7S-TR CAD Model

Description

The ECS-73-20-7S-TR is a MHz crystal from the ECX-3S series.

  • Frequency: 7.3728 MHz
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Mounting Type: Surface Mount
  • Package: 4-SOJ, 9.40mm pitch
  • Height: 0.146 inches
  • Size: 0.492 inches x 0.181 inches
  • Temperature Range: -10 to 70°C
