Same model may have multiple batches, images only for reference.

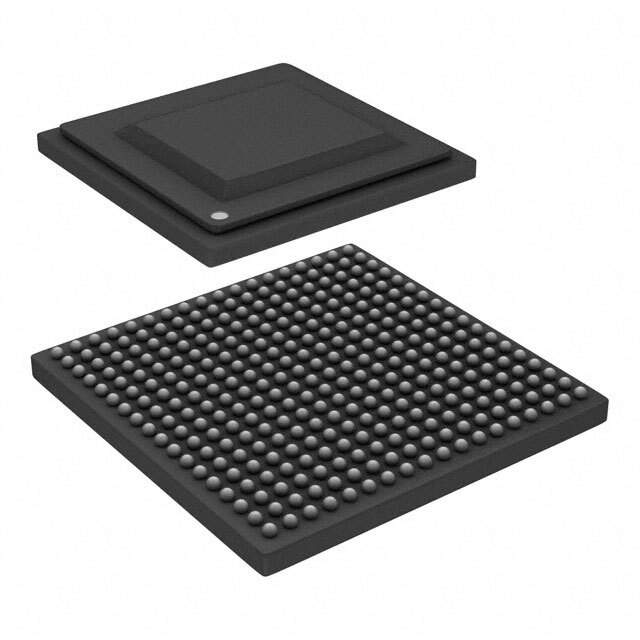

89HPES12N3YCBCG Real Image
Same model may have multiple batches, images only for reference.

89HPES12N3YCBCG

Part No 89HPES12N3YCBCG
Manufacturer IDT, Integrated Device Technology Inc
Catalog Interface - Specialized
Description IC PCI SW 12LANE 3PORT 324-BGA / PCI Express Switch I/O Expansion Switch 12Lanes 3 Port 1-CH 324-Pin CABGA Tray
Datasheet
89HPES12N3YCBCG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IDT, Integrated Device Technology Inc
Series PRECISE
Packaging Tray
Applications Switch Interfacing
Interface PCI Express
Operating Supply Voltage 3.3V
Package 324-LBGA
Manufacturer Package 324-CABGA (19x19)
Mounting SMD
Win Source Part Number 776661-89HPES12N3YCBCG
Popularity Medium
Supply and Demand Status Limited
Family Name 89HPES12N3
Introduction Date April 13, 1999
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 89HPES12N3YCBCG CAD Model

Description

The 89HPES12N3YCBCG is a PCI Express Interface IC from IDT's PRECISE series.

  • Type: Switch interfacing
  • Supply Voltage: 3.3V
  • Package: 324-LBGA
  • Mounting: Surface-mounted
  • Family Name: 89HPES12N3
  • Introduction Date: April 13, 1999
  • Halogen-Free: Yes
  • Obsolete: Yes
  • Supply and Demand Status: Limited
